A Man-Pack Chameleon Elecraft HF Station

Discussion in 'Amateur Radio Antennas' started by Moleculo, Mar 23, 2016.

  1. Moleculo

    Moleculo
    Expand Collapse
    Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,802
    Likes Received:
    800
    For some time, I've wanted to put together a quickly deployable HF station that I can use from a backpack while hiking in the local mountains and desert, or just for use with a bug out bag. We've all seen the pictures of the military applications and I wanted something that would work reasonably well for civilian use. I've owned the Elecraft KX3 since it came out (I was one of the first to receive the kit when it shipped) and have been searching for a suitable backpack antenna ever since. Chameleon Antenna has provided me with an elegant solution to complete the setup.

    [​IMG]

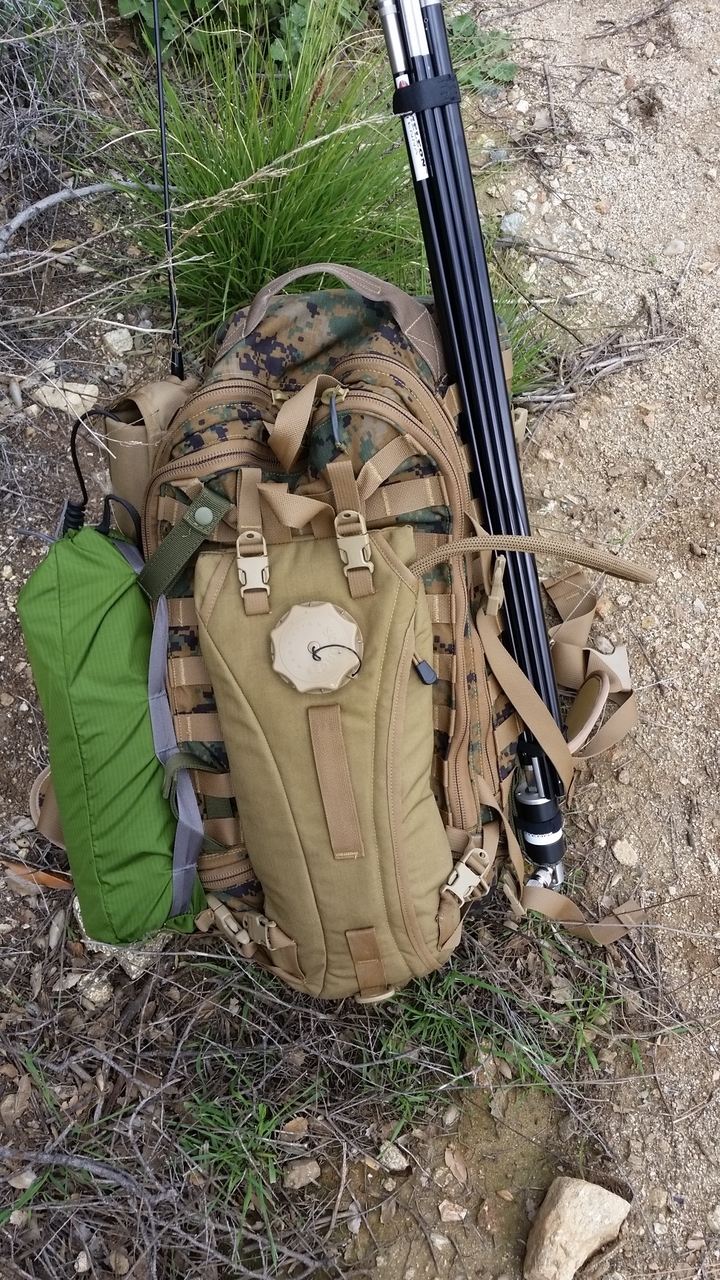

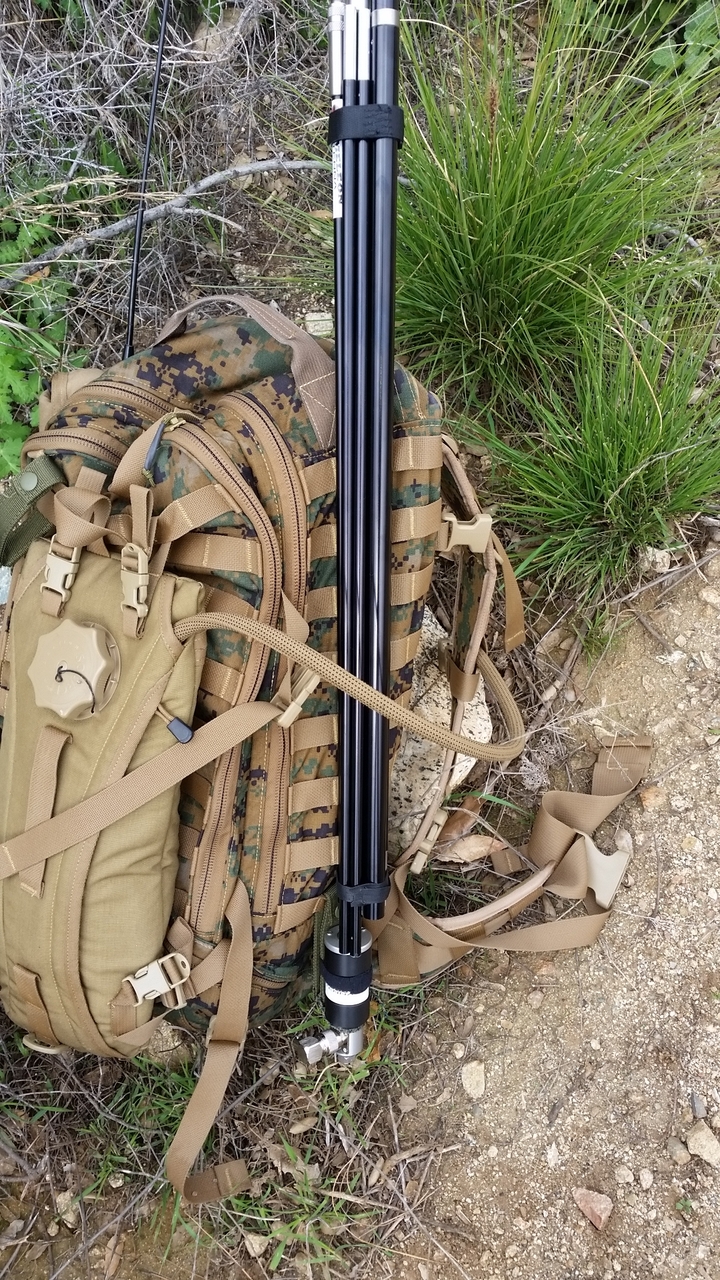

    There are a couple of different ways to configure the Chameleon products to create the Chameleon man-pack antenna; the setup in the picture above includes the CHA HYBRID-MICRO which is a 5:1 UNUN in a heavy duty package with 60' of wire, the 10'-8" CHA MIL WHIP, and the CHA MIL WHIP EXT which is a 6'-6" whip weighing 1 lb. In this example, I used the PALS webbing on the side of my USMC ILBE Recon pack as the attachment for the antenna, sliding the base of the whip extension through all of the webbing. The rest of the antenna folds down neatly and is secured using velcro straps.

    [​IMG]

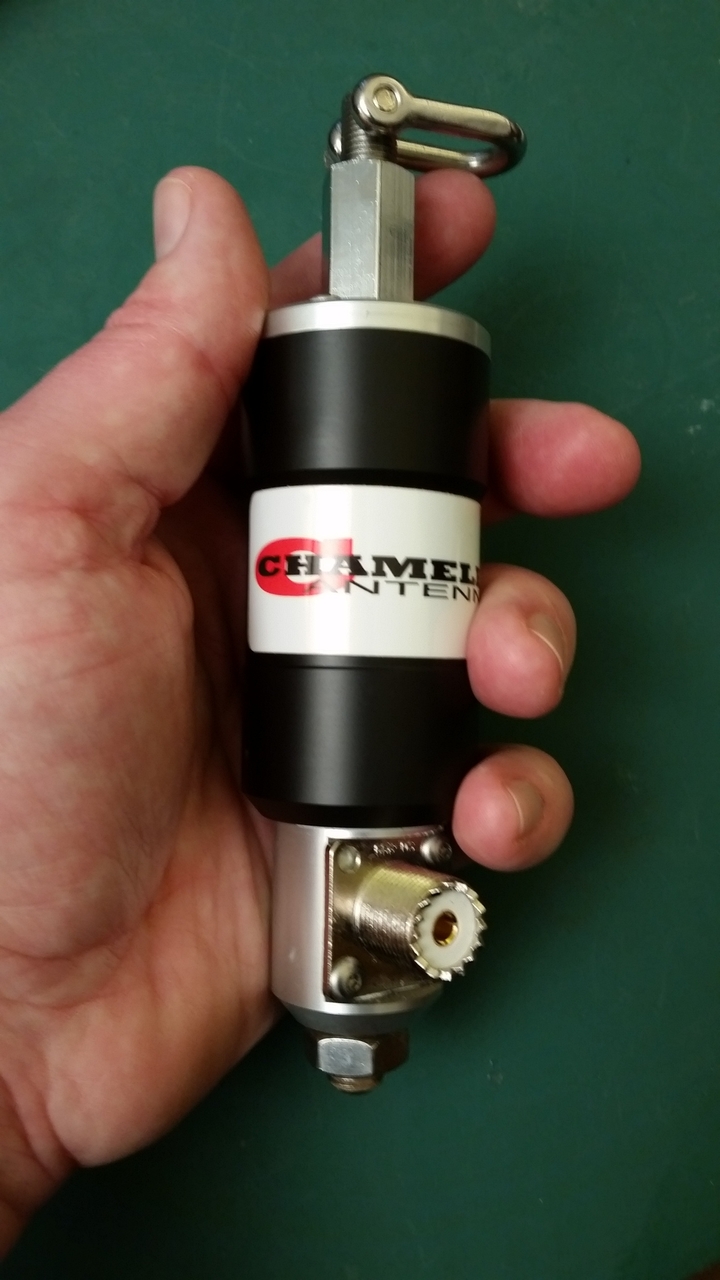

    The Chameleon CHA MICRO is the heart of the solution. This sturdy UNUN is configured in a manner that will allow you to use it either with a standard 3/8-24 antenna whip, or with a longer wire suspended from something like a tree. The base lug acts as the counterpoise should you choose to use one.

    [​IMG]

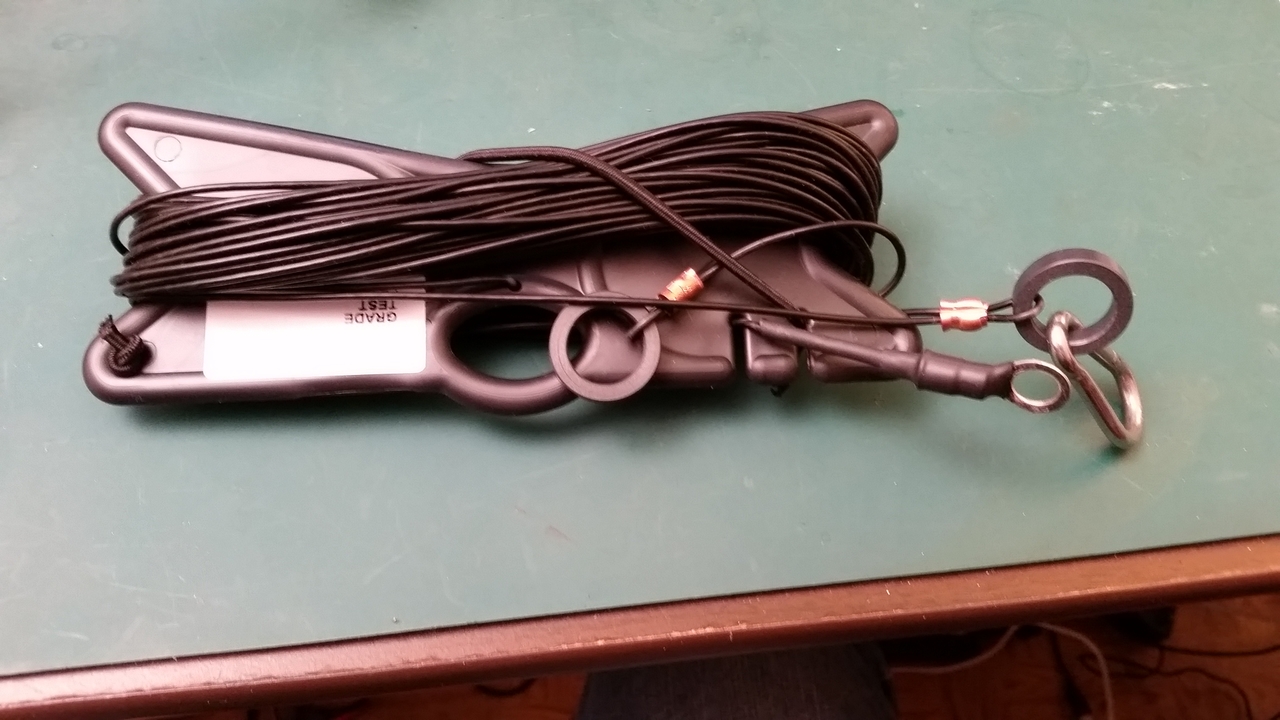

    The Micro also comes with 60' of wire on a kite winder that can be used either as the main radiating element or as the counterpoise:

    [​IMG]

    For the Man-Pack application, you would only ever use this as counterpoise until you got to a stationary location with adequate support. It's a nice option, but I found that the wire was a little too heavy gauge and bulky for the typical backpacking use-case. I will probably opt to swap this out for something much more compact that will serve the same purpose.

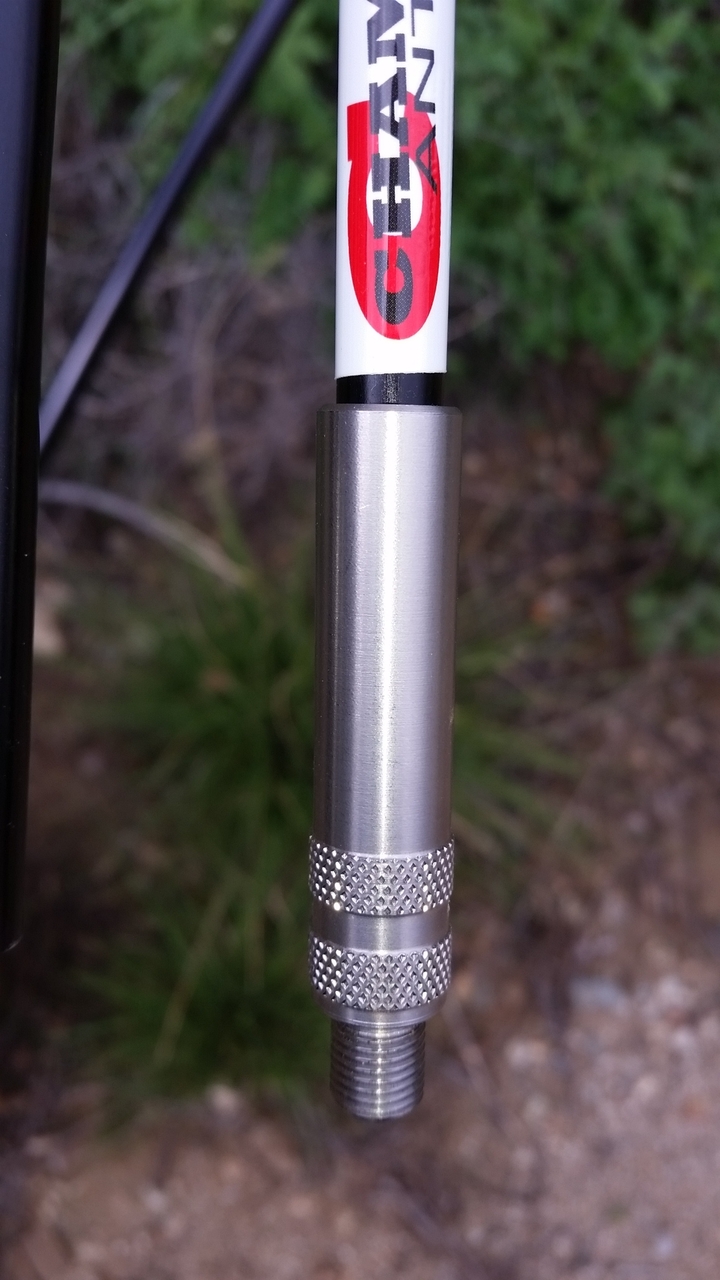

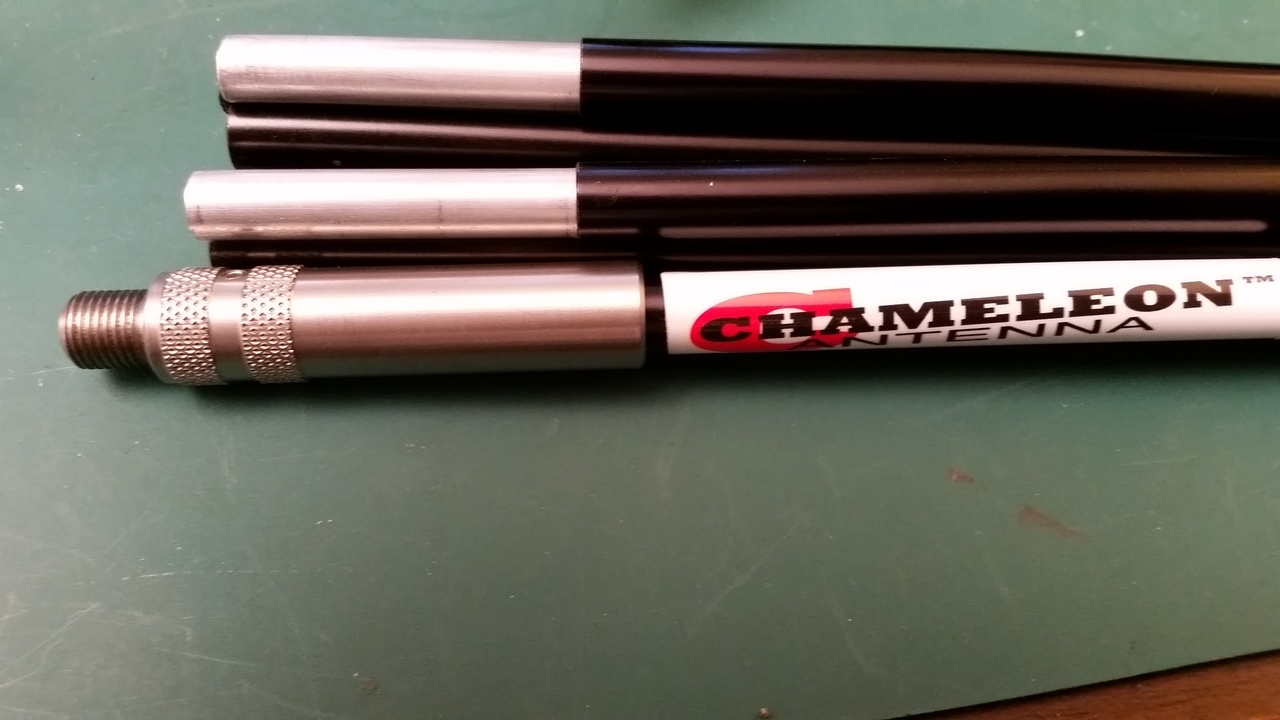

    The main whips (dubbed CHA-MIL by Chameleon) are basically high quality tent poles with shock cord and a 3/8-24 mounting adapter pinned on one end. The are sturdy, well made and have as little flex as a shock cord antenna element can have.

    [​IMG]

    [​IMG]

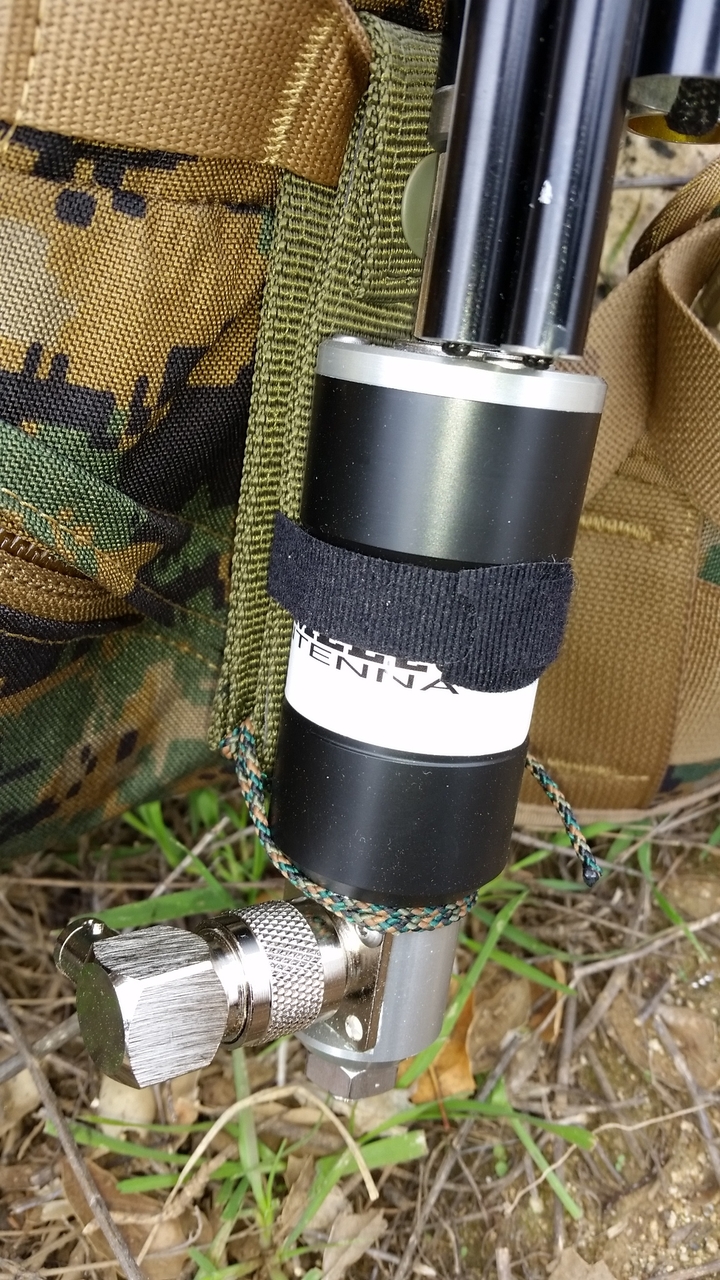

    Securing the UNUN base of the antenna to the pack was simply a matter of using a MOLLE strap with some cord to lash it to the strap - the end result is a nicely secured and packable antenna that doesn't require separation from the pack to deploy. The PALS system is really is the way to go for constructing a portable antenna that is super quick to deploy. I also added a PL-259 to BNC adapter to add a little extra speed to the deployment process.

    [​IMG]

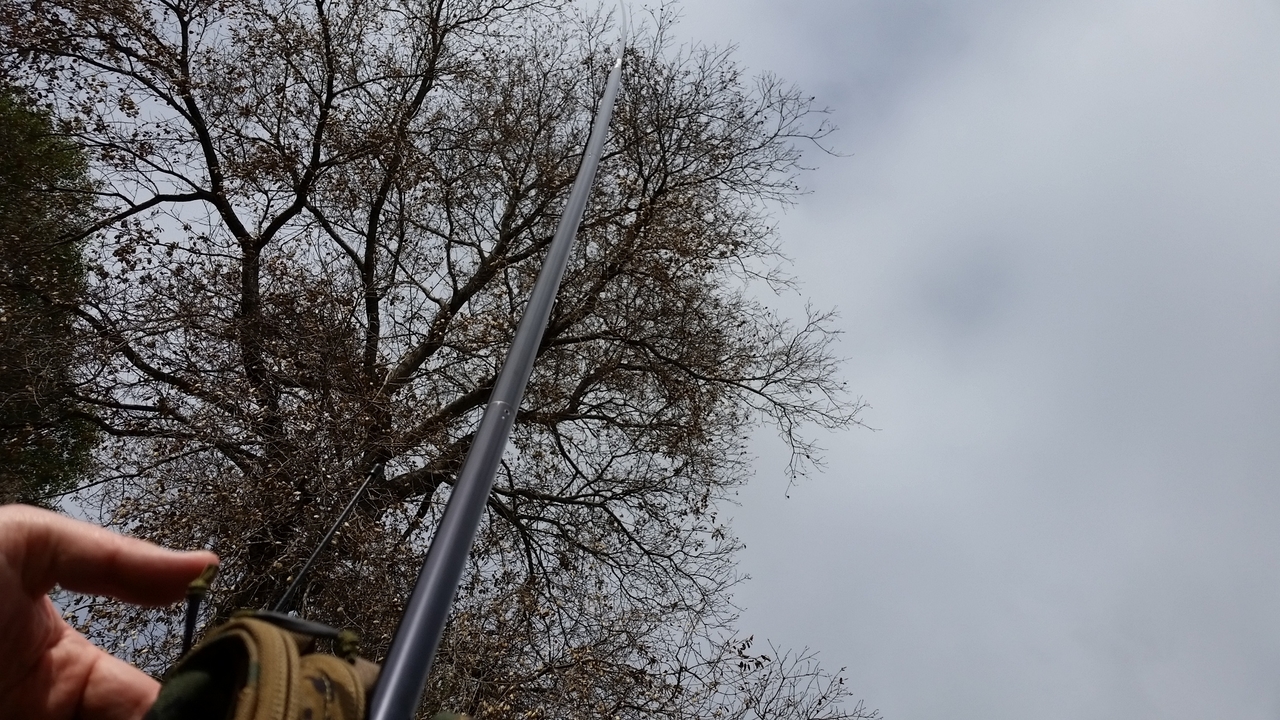

    To deploy, I just set the pack on the ground, bracing it with some rocks, logs, or whatever else I can find to keep the pack upright. In this picture, I've deployed it with the whip extension, making the total height of the antenna just over 17'.

    [​IMG]

    And this is where you run into a problem with this setup. While the whip extension is very rigid, the side of the pack is not. The whole antenna has a high center of gravity and wants to fold over onto the pack. I took some stuff out of the pack to stabilize the base of the pack, as well as used some rocks to balance it to get it stable. Another idea might be to use some small cord with tent pegs to guy the base of the extension. The added height that the extension adds is a good idea to help increase performance of the antenna but it also results in a trade-off for stability and functionality.

    In this fuzzy cell phone pic, I've used my water bladder to stabilize the base of the pack and have the KX3 resting on my carry pouch, plugged into the antenna.

    [​IMG]

    The KX3 has no problem tuning 6m-40m using the shown setup, which is not using a counterpoise wire. I made a short video that demonstrates me communicating with an NPOTA station in Wyoming (I'm in Southern California)



    Later in the day, I tried a different configuration where I got rid of the whip extension and only used the 10'-8" whp for the main antenna. For this test, I deployed the counterpoise wire out about 30' and was successful in making a good contact to Hawaii right at grey-light.

    After playing with the options for a bit, my ongoing manpack configuration will be the MIL WHIP with the CHA-MICRO. I will not normally take the extension unless there's a specific reason to do so. Using just the regular whip makes deploying the antenna while still attached to the pack much more manageable because it is much lighter and less rigid. As a result, the antenna is less prone to folding over onto the backpack. It's also more inline with the purpose for a man-pack: light, packable, easy to deploy and break down, and can still facilitate basic communications. If you don't mind carrying an extra pound, carry the wire which can be used for both counterpoise or a main antenna if you're near a support structure. The Elecraft KX3 with internal batteries is the perfect rig for this application; if you can add an external battery, the rig's output power can jump from 5 watts to 15 watts - a significant increase!

    This is a really fun HF setup which is also extremely portable and lightweight. There's not really any reason why you can't take this portable station with you on any walk or hike and be on the air in seconds. You could even deploy the antenna, put the pack back on your back and operate the KX3 in your hands! My quest for a great Man-Pack station has been filled, hopefully this will inspire you to get out and experience nature while having a little fun with ham radio, as well.


  2. 2RT307

    2RT307
    Expand Collapse
    Sr. Member

    Joined:
    Nov 22, 2011
    Messages:
    2,112
    Likes Received:
    609
    Cool stuff, Moleculo. Just curious, what elevation?

    73,
    Brett

  3. Captain Crunch

    Captain Crunch
    Expand Collapse
    Sr. Member

    Joined:
    Jan 2, 2012
    Messages:
    12
    Likes Received:
    2
    Wow this is amazing!! I should have bought that from Chameleon Antenna instead!!

    Since a long time, I was having a lot of performance issues and unstable SWR with the EZ Military whip from Alpha Antenna. I tried just about everything possible until I found the real problem: extremely poor manufacturing!!!

    The truth came to light when a friend of mine (who tried to help me to fix the antenna) forwarded me the following two youtube videos that explain everything you’ve to know about the EZ Military:





    It’s shocking!

    - CC

  4. Chameleon Antenna

    Chameleon Antenna
    Expand Collapse
    Versatile, Dependable, Stealth and Built to Last.

    Joined:
    Nov 25, 2015
    Messages:
    30
    Likes Received:
    7
    Pretty well done sir!

    Carl

  5. Mudfoot

    Mudfoot
    Expand Collapse
    Sr. Member

    Joined:
    Jun 17, 2009
    Messages:
    8,098
    Likes Received:
    2,484
    $$$

  6. Chameleon Antenna

    Chameleon Antenna
    Expand Collapse
    Versatile, Dependable, Stealth and Built to Last.

    Joined:
    Nov 25, 2015
    Messages:
    30
    Likes Received:
    7
    We've a kit the MPAS at $299 free shipping

    1 X CHA HYBRID-MICRO
    1 X CHA JAWMOUNT
    1 X CHA MIL

    The CHA MIL EXT is $132 USD extra.

    You can send us an email here: support@chameleonantenna.com

    Carl

  7. binrat

    binrat
    Expand Collapse
    WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    1,787
    Likes Received:
    484
    I have the Ez Military as well, not as nicely built but never had issues like what's in the videos. I wish I know about this antenna when I was buying.

  8. Chameleon Antenna

    Chameleon Antenna
    Expand Collapse
    Versatile, Dependable, Stealth and Built to Last.

    Joined:
    Nov 25, 2015
    Messages:
    30
    Likes Received:
    7
    If you watch the following you'll see it's worse:


  9. Moleculo

    Moleculo
    Expand Collapse
    Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,802
    Likes Received:
    800
    About 800 feet.

    2RT307 likes this.
  10. Moleculo

    Moleculo
    Expand Collapse
    Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,802
    Likes Received:
    800
    I didn't start this thread to turn it into something that bashes a different manufacturer's product.

    I don't know anything about the other product, but I would love to do a side-by-side comparison at some point. The Chameleon product is not inexpensive, but it's not built cheaply, either. I like it for my intended use-case.

    2RT307 likes this.
  11. gamegetter

    gamegetter
    Expand Collapse
    Well-Known Member

    Joined:
    Aug 25, 2010
    Messages:
    1,536
    Likes Received:
    210
    thanks for the post Moleculo, even though i don't have a need for one yet, i am that much more informed about the products.

    good reviews and product comparisons are good for both manufacturers as competition drives innovation and improvements(if needed or not)

    2RT307 likes this.
  12. camaro1

    camaro1
    Expand Collapse
    Well-Known Member

    Joined:
    Nov 2, 2012
    Messages:
    958
    Likes Received:
    312
    very cool,,, I have wanted to do something like this also and get away for a weekend, camp out and make some contacts,, just haven't made the purchase of portable equipment as I can hardly find time to get away

    2RT307 and gamegetter like this.
  13. 2RT307

    2RT307
    Expand Collapse
    Sr. Member

    Joined:
    Nov 22, 2011
    Messages:
    2,112
    Likes Received:
    609
    Seems like it was working very well. We have some hills around here, but no trees to speak of, unless you count mesquite trees. :LOL: Stringing up anything like a wire antenna can be pretty tough to do. This looks like a nice solution for portable use. As always... thanks for the review!

    73,
    Brett

  14. Chameleon Antenna

    Chameleon Antenna
    Expand Collapse
    Versatile, Dependable, Stealth and Built to Last.

    Joined:
    Nov 25, 2015
    Messages:
    30
    Likes Received:
    7
    Here you side by side comparison:


  15. binrat

    binrat
    Expand Collapse
    WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    1,787
    Likes Received:
    484
    Maybe sometime I will send mine to you. Not using it very much these days.
