Cheap TCXO installed in Kenwood TS-450s

Discussion in 'General Ham Radio Discussion' started by KD2GOE, May 20, 2017.

  1. KD2GOE

    KD2GOE
    Expand Collapse
    W9WDX Amateur Radio Club Member

    Joined:
    May 30, 2013
    Messages:
    815
    Likes Received:
    122
    My radio was drifting a lot with the Stock crystal so i picked up a cheap tcxo I Though I would post this just in case any one wants to put on in there TS-450 or any Kenwood that takes the SO-2 option tcxo there rare and a lot of money and i wanted to show off my work.. It would be nice if it was just a drop in but the +5v and the single out pins are flipped so i was not going to let that stop me! I cut a small PCB to make it pin compatible.
    the out come it is so much nicer! just turn it on and talk!

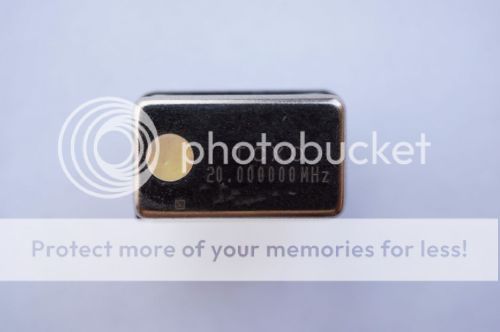

    I go this one from E-Bay it was marked as $20 shipped but he took an offer for $15 :D
    [​IMG]


    here it is soldered onto a board
    [​IMG]


    Back side
    [​IMG][/URL]


    testing it before installing it in to the radio just in case it lets the smoke out..
    [​IMG]



    the frequency counter i have in the pic i retrofitted a TCXO in that i took it to a local place and had them make sure it was spot on..
    [​IMG]

    oh yeah there it is all sitting pretty (y)
