Still a work in progress...

Discussion in 'Station & Mobile Pics' started by Blackcat630, Jan 30, 2017.

  1. Blackcat630

    Blackcat630
    Expand Collapse
    Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    338
    Likes Received:
    193

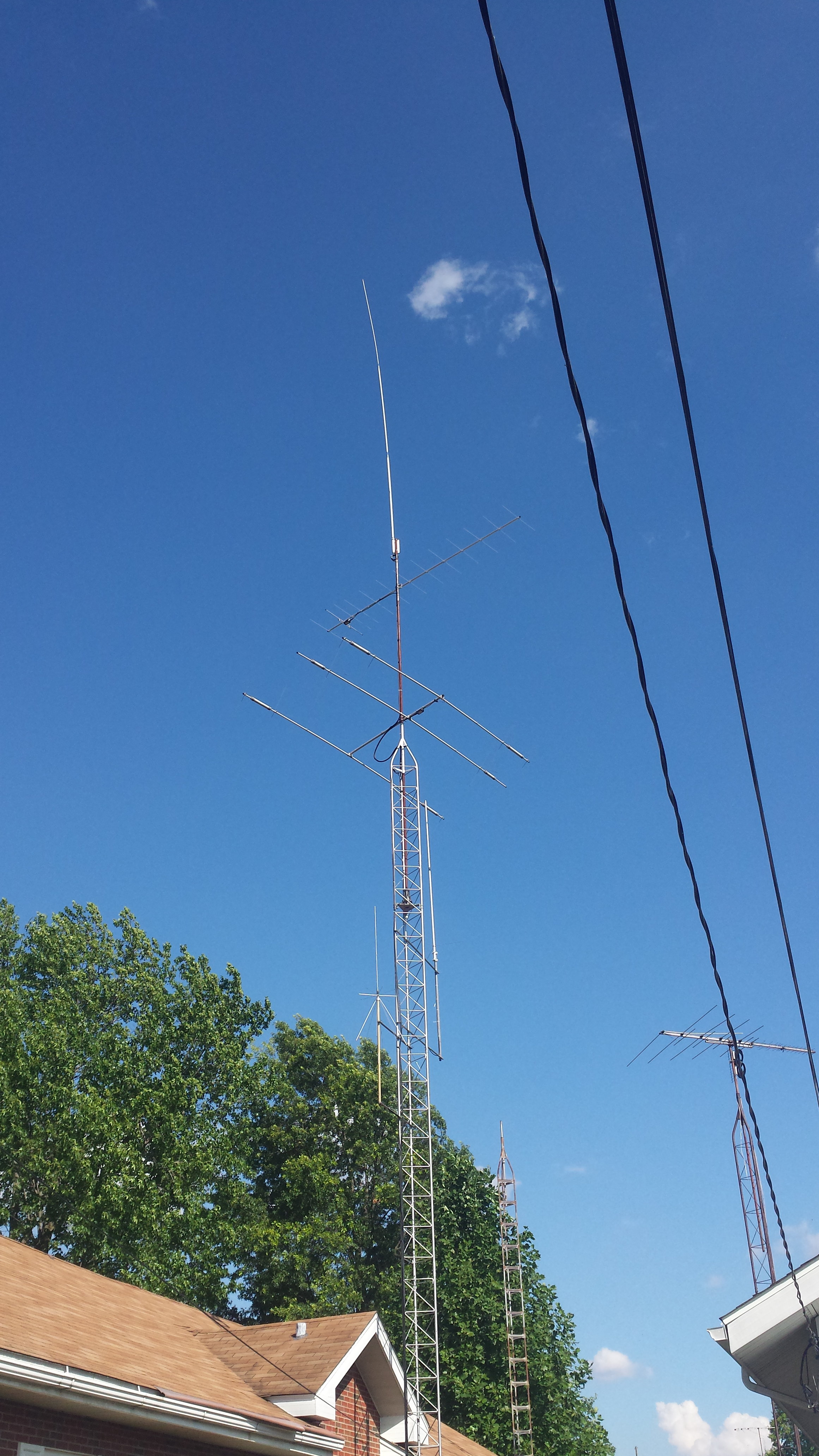

    Come April I have been a member for 4 yrs. Couple yrs ago I posted some pics of the install of my old honda. I figured it's time to share some pics and info on my home setup. This is, as the title of thread suggests, a work in progress. It's been about 3 yrs in the making and not complete yet. Lots of hard work, time, $...ect.. I'm very thankful for the help of my radio friends both new guys and elmers. 20140722_113244.jpg Lots of digging by hand. Did it by my self over a couple weeks with limited time off work. My neighbors house is close so no room to leave a big dirt pile in my yard. Everything I shoveled out went into the bed of my truck and had to be hauled off. This pic is about 3/4 complete. Hole ended up at about 4x5 and 5ft deep. Bottom 6in was lined with gravel for tower leg drainage. 20140810_155931.jpg After all that I had my concrete pored from a truck. Wasn't about to mix that many bags of sack create!! 20141025_141403.jpg It turned out pretty well. I then ran out of warm weather and time off work so it sat till next spring. I then took the rest of the tower (rohn 45) and gave it a coat of paint. When I aquired the tower it was black so I decided to repaint it. I propped up the sections on saw horses and my fence, got a gallon of chain link fence paint, a wash mitt and went to town. Note: always wear a elbow length heavy duty rubber glove under the wash mitt unless you want a silver hand! Painted 4 sections and nose cone in under an hour. 20141025_141345.jpg I don't have any pics of the tower raising day probably because I was on the tower most of the time. 3 guys and a gin pole and it actually went pretty smoothly. Putting up the mast (24ft schedule 80) and ma5b was a different story. It was tricky and we had to be careful not to destroy the beam pulling it up between the two houses and around the cable line. It all came together but it was a really long couple of Saturdays. One weekend was spent building stand offs, running coax and other odds and ends. The next was spent putting up the stuff I couldn't do by myself. The finished product turned out great. All the hard work was definitely worth it. At the bottom working up I have a discone at around 30 ft for the scanner. Next up at 36ft a comet 333 tri band vertical for 2m/220/440. Next we have the stand off for the g5rv at about 45ft. Each leg runs down to about 15 ft above ground. On the mast is the cushcraft ma5b 20-10 beam, boom at about 48ft. Next up at about 58 20160619_170725.jpg ft is a cushcraft 13b2. At the top is a Imax 2000 at 61ft to the choke/feed point 20161009_155024.jpg 20160619_170342.jpg Here is a pic of the desk. Consists of: Kenwood TS 2000 w sp 23 & mc 60. TYT 9000 220, tyt 7800 2m/440. Bearcat 9000. Comet hf-uhf meter. Control box for the G800 yaesu rotor. Emperor 5010, connex 4800, galaxy 2527 silver eagle D104 and the old 4 pill/power supply. 20170129_122916.jpg Future plans are to use the old tv antenna tower next to the house to hold a 6m beam. Also want to build/learn more wire antennas. Get my Extra!! General is great but I would like full privileges and eventually a shorter/vanity call. Was bored tonight and just thought I would share ....73 all




  2. flatlander89

    flatlander89
    Expand Collapse
    Member

    Joined:
    Feb 28, 2015
    Messages:
    28
    Likes Received:
    5
    Very nice.Impressive radios too!

    Blackcat630 likes this.
  3. 222DBFL

    222DBFL
    Expand Collapse
    Sr. Member

    Joined:
    Jul 28, 2013
    Messages:
    3,301
    Likes Received:
    1,282
    Good work man! Takes time to get things right. Looks like you took your time. Feels good to complete a project as such and be able to then use it for years to come. Good job Blackcat630. (y)(y)

    Blackcat630 likes this.
  4. RoadRanger

    RoadRanger
    Expand Collapse
    Active Member

    Joined:
    Mar 13, 2015
    Messages:
    100
    Likes Received:
    26
    Looks very nice.

    Blackcat630 likes this.
  5. w9cll

    w9cll
    Expand Collapse
    W9WDX Amateur Radio Club Member

    Joined:
    Jan 19, 2013
    Messages:
    2,780
    Likes Received:
    1,385
    Nice!

    Blackcat630 likes this.
  6. Bundy

    Bundy
    Expand Collapse
    Tired and broke

    Joined:
    Feb 16, 2009
    Messages:
    245
    Likes Received:
    83
    Very impressive!!!!!

    Blackcat630 likes this.
  7. Blackcat630

    Blackcat630
    Expand Collapse
    Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    338
    Likes Received:
    193
    Thanks guys (y)

  8. Old_Crow

    Old_Crow
    Expand Collapse
    Active Member

    Joined:
    May 11, 2016
    Messages:
    54
    Likes Received:
    49
    Great Job, Happy DXing.

    Blackcat630 likes this.
  9. 6meter

    6meter
    Expand Collapse
    Active Member

    Joined:
    Apr 19, 2010
    Messages:
    108
    Likes Received:
    48
    Do you have a house bracket on the Rohn 45?

    I would worry about the wind load of an unguyed tower.

  10. Bundy

    Bundy
    Expand Collapse
    Tired and broke

    Joined:
    Feb 16, 2009
    Messages:
    245
    Likes Received:
    83
    Think I see some guy lines in the picture.o_O

  11. Blackcat630

    Blackcat630
    Expand Collapse
    Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    338
    Likes Received:
    193
    No house bracket. This is why I went with 45. It's actually really solid on top even with 2 grown guys working. It wiggled less than just me on 40-50ft of rohn 25. Last summer we had some 60mph gusts and it took off a few shingles..tower was fine. I do have a couple old house brackets and some spare angle iron laying around. For extra security it might be a project for this spring.

  12. Blackcat630

    Blackcat630
    Expand Collapse
    Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    338
    Likes Received:
    193
    G5RV

  13. Bundy

    Bundy
    Expand Collapse
    Tired and broke

    Joined:
    Feb 16, 2009
    Messages:
    245
    Likes Received:
    83
    Need to get my eyes checked

  14. fourstringburn

    fourstringburn
    Expand Collapse
    W9WDX Amateur Radio Club Member K5KNM

    Joined:
    Feb 11, 2007
    Messages:
    1,365
    Likes Received:
    738
    Yes sir! Your hard work and dedication will reward you with many great contacts. (y)

    Blackcat630 and 222DBFL like this.
  15. Blackcat630

    Blackcat630
    Expand Collapse
    Sr. Member

    Joined:
    Apr 2, 2013
    Messages:
    338
    Likes Received:
    193
    So far it has worked better than I anticipated. The ma5b is a small footprint beam and with only 100w I didn't expect it to work as well as it does. I have been pleasantly surprised. I'm not busting big pile ups on the first call...but I can usually get through with a few calls. Generally what I can hear I can work without a problem.
