Clear Channel Ranger AR3500
Documentation Project
CBTricks.com

TTIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.


SPECIFICATIONS
     Front Panel Controls and Functions
     Operation



Owner's Manual (Courtesy of John at West Coast Radio)

Product Information Sheet

SM-2 Scanning Microphone Install Information

ALIGNMENT PROCEDURES

AR330-AR3500 Alignment Info (This was sent to me from Pegleg)



DIAGRAMS

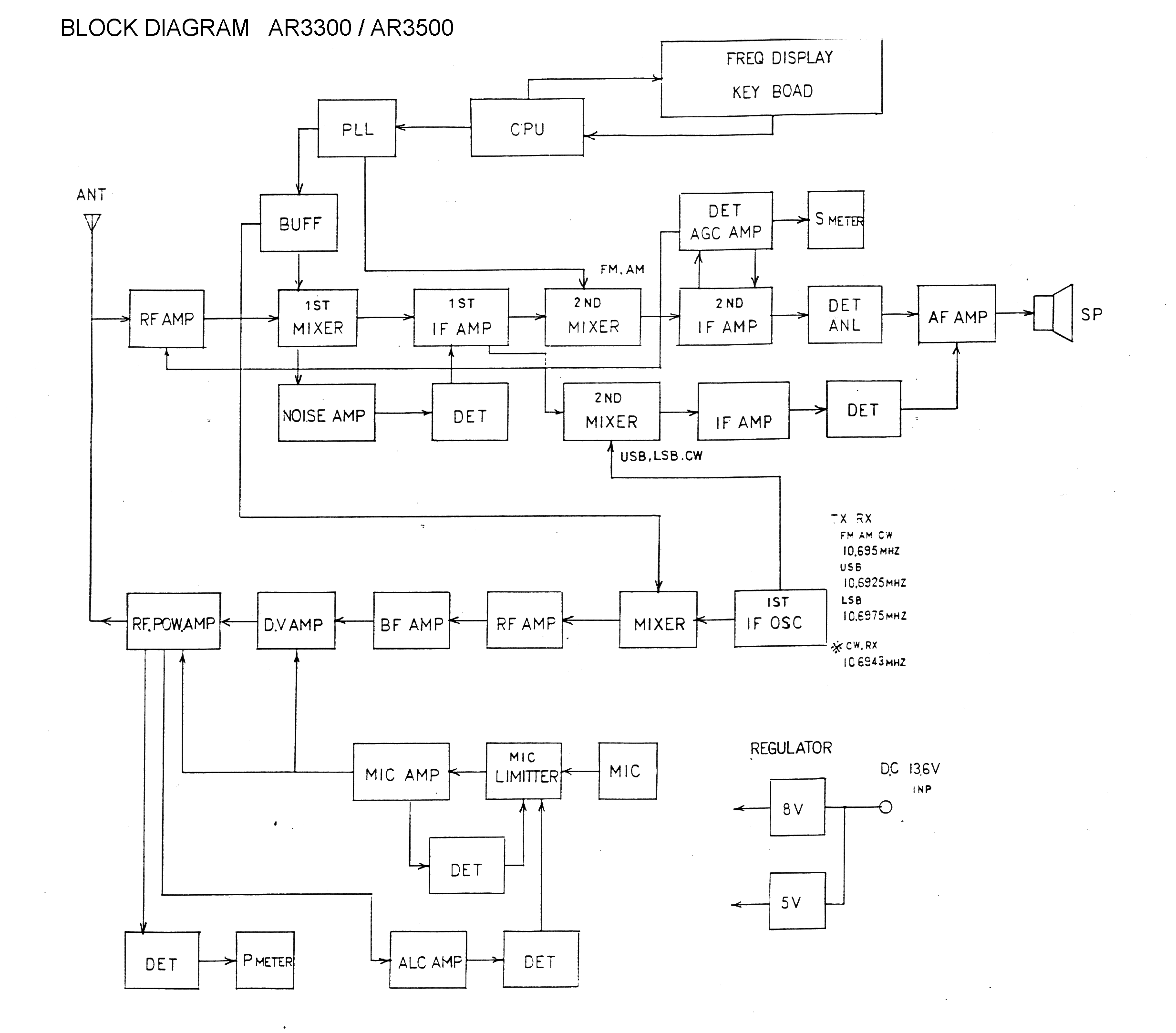

    AR3500 Block Diagram

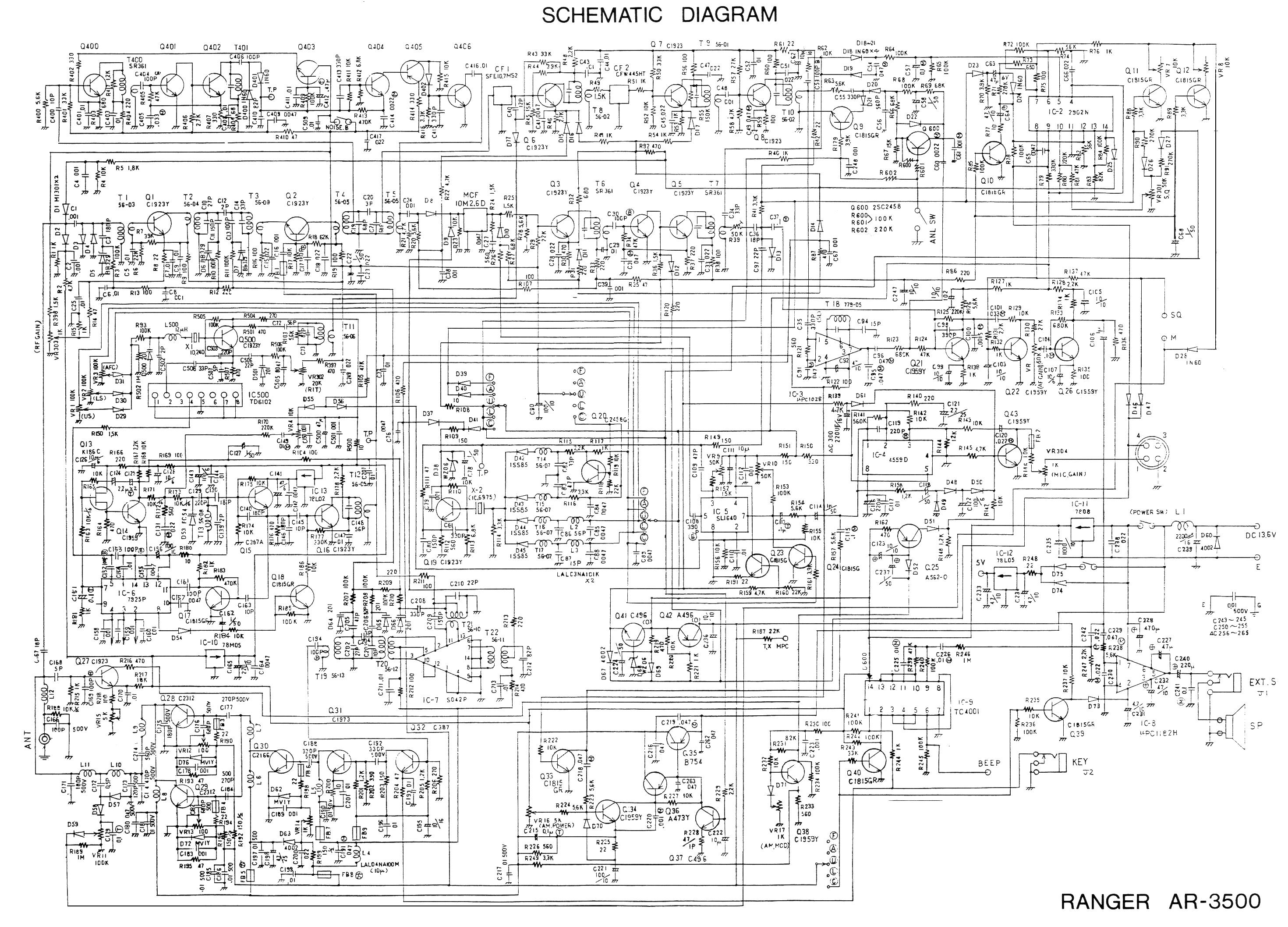

    AR3500 Schematic Diagram

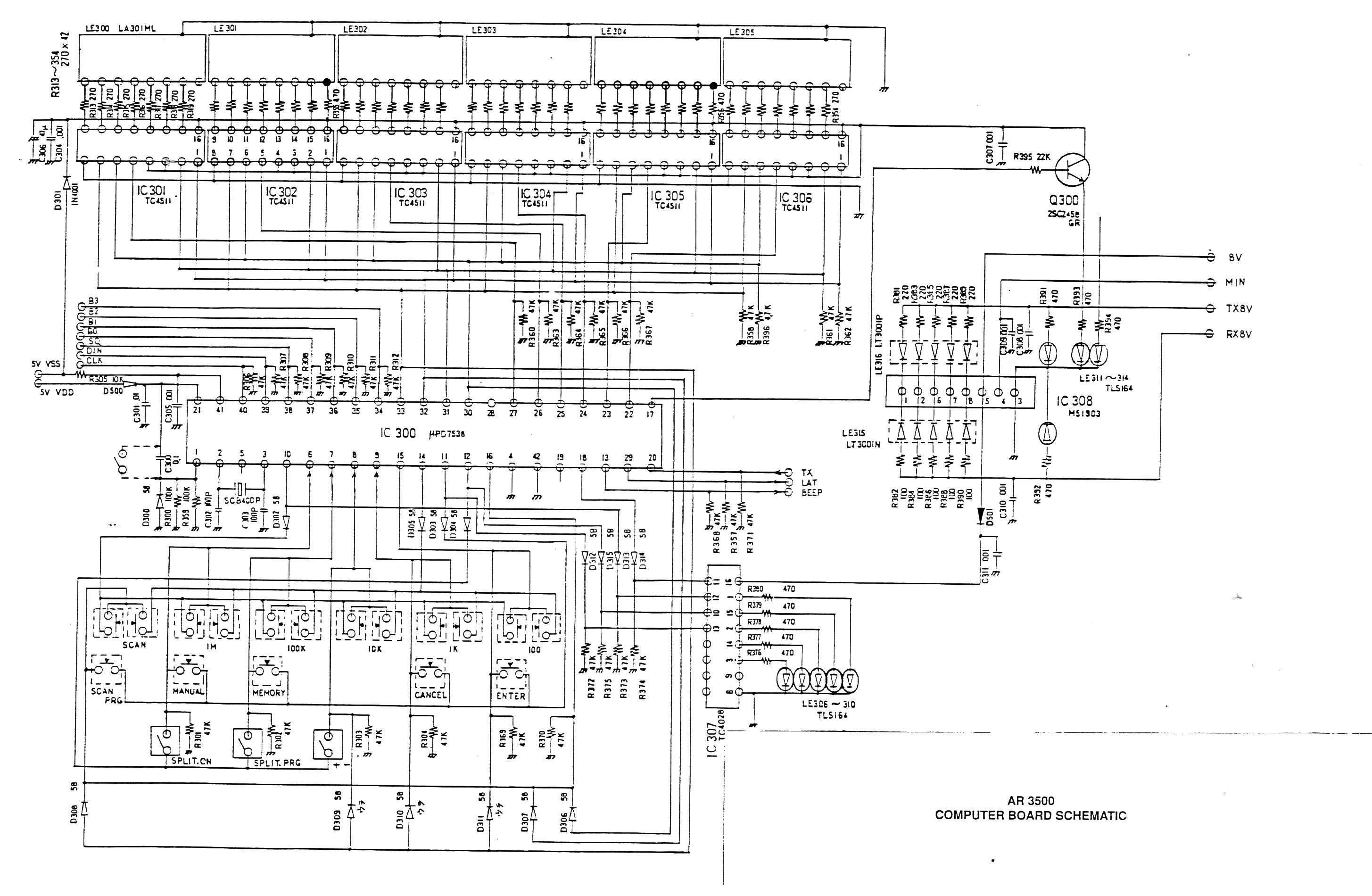

    AR3500 CPU Schematic Diagram

PCB Layouts

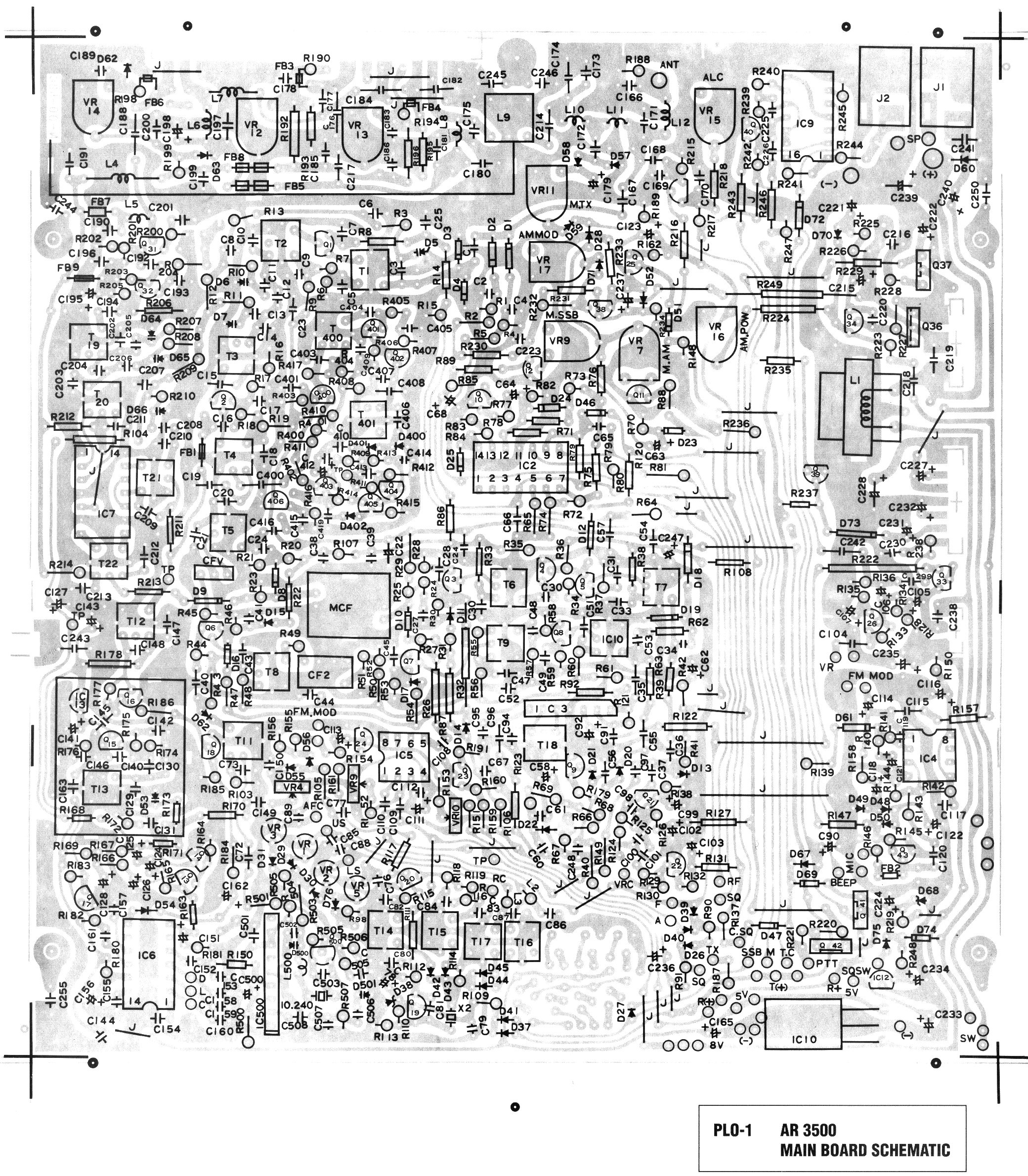

    Main PCB Layout

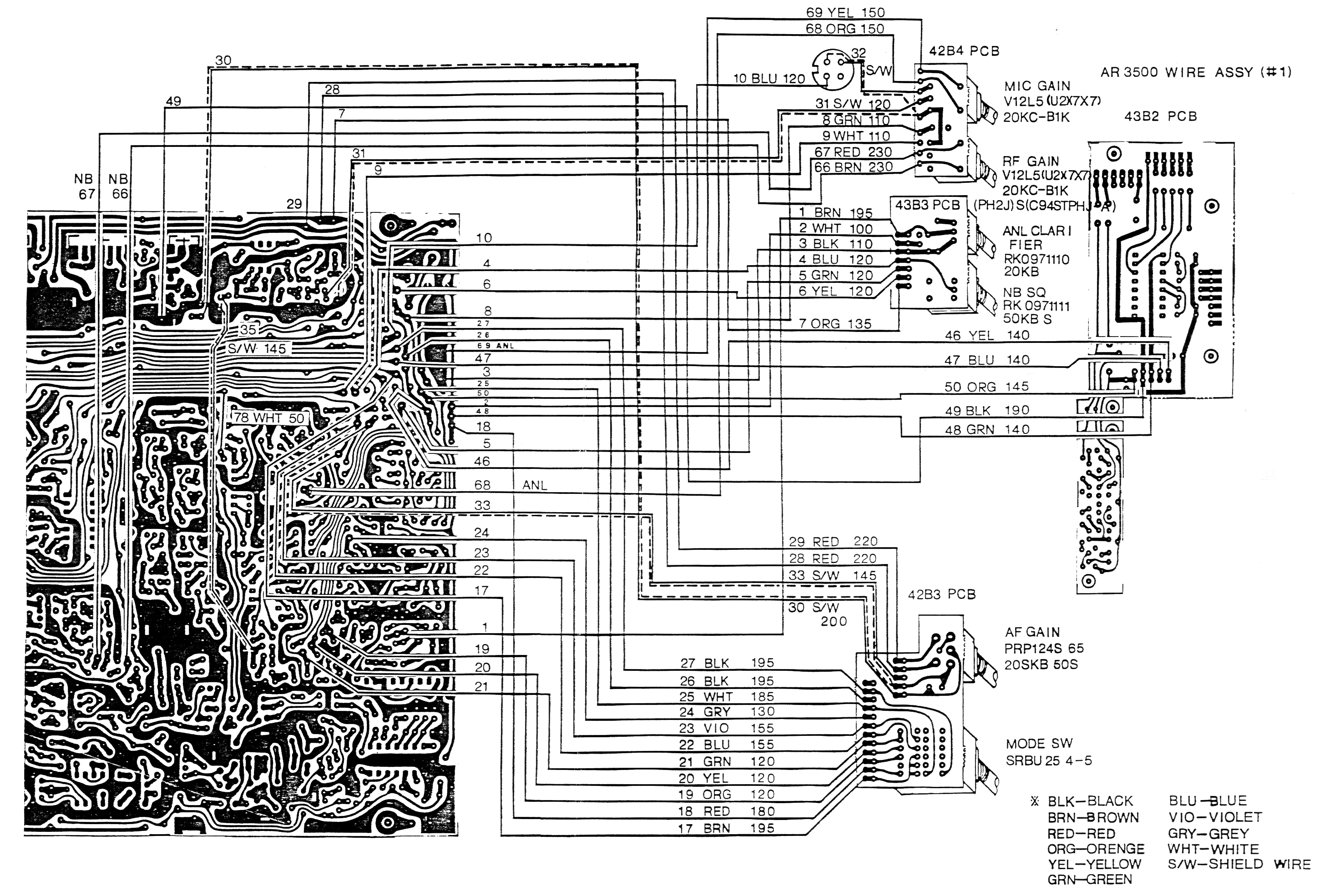

    Wiring Diagram Sheet 1

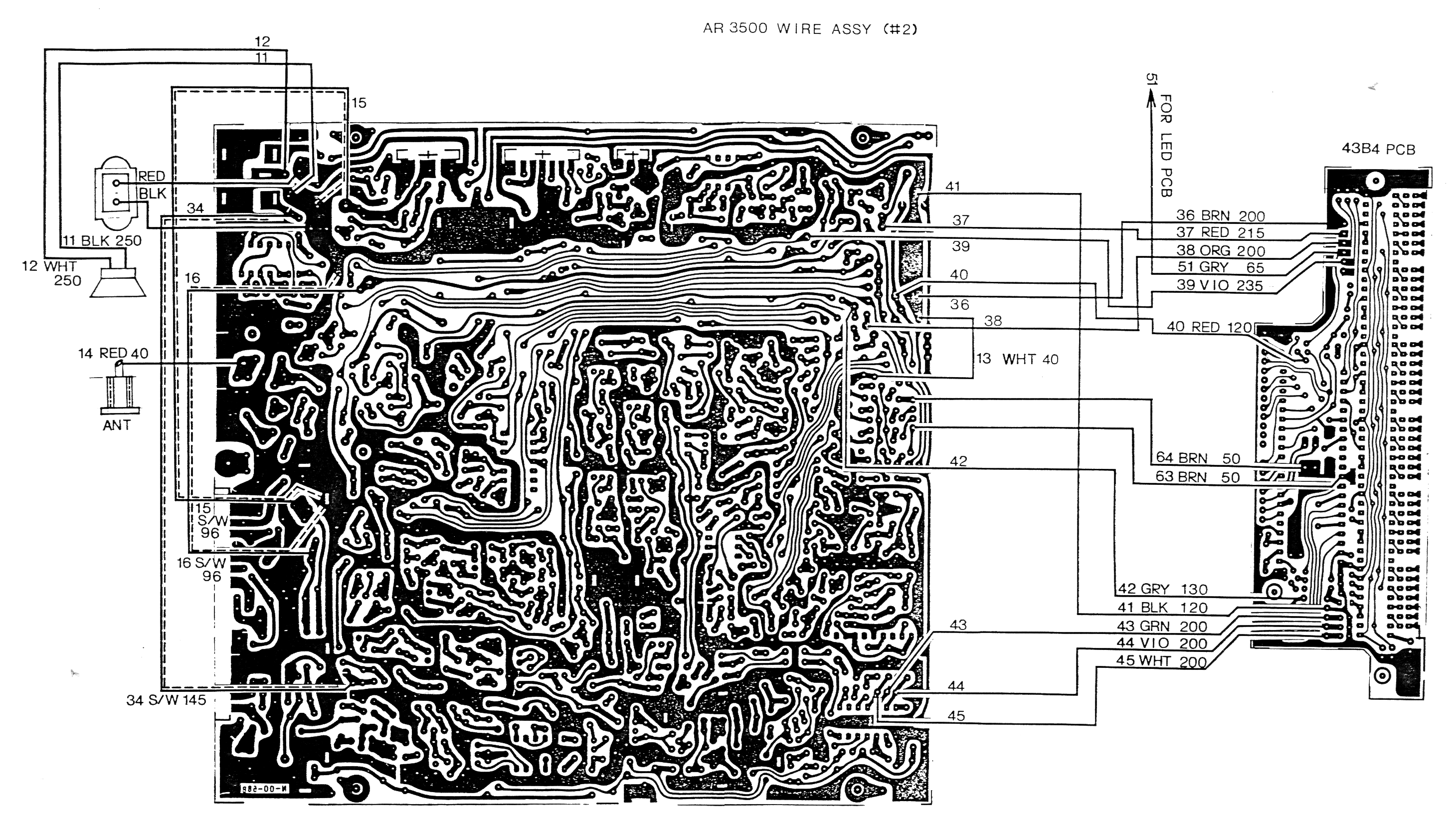

    Wiring Diagram Sheet 2
