Cobra 29LTD, 29LTD ST, 29WX ST
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.

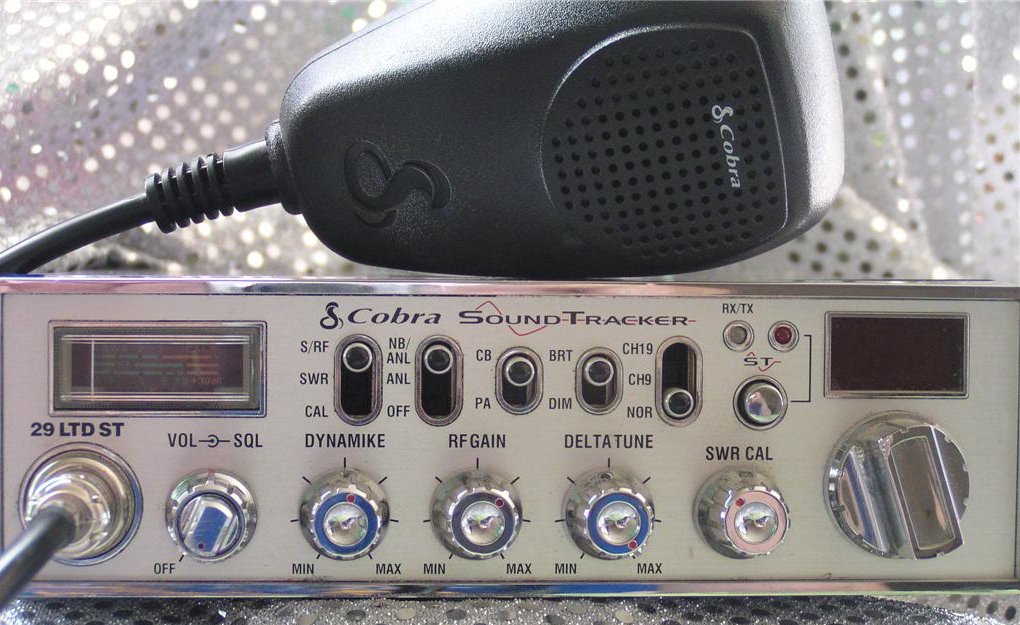

Click Picture to See Close-up

29LTD ST Owners Manual
29WX ST Owners Manual

DIAGRAMS
    29LTD ST Schematic Diagram
    29LTD ST Schematic Diagram
    29WX ST Schematic Diagram
    WX Schematic Diagram

29LTD, 29LTD ST, 29WX ST Factory Service Manual
     Page 1 to 11
     Page 12 to 34

29LTD Factory Service Manual
     29LTD

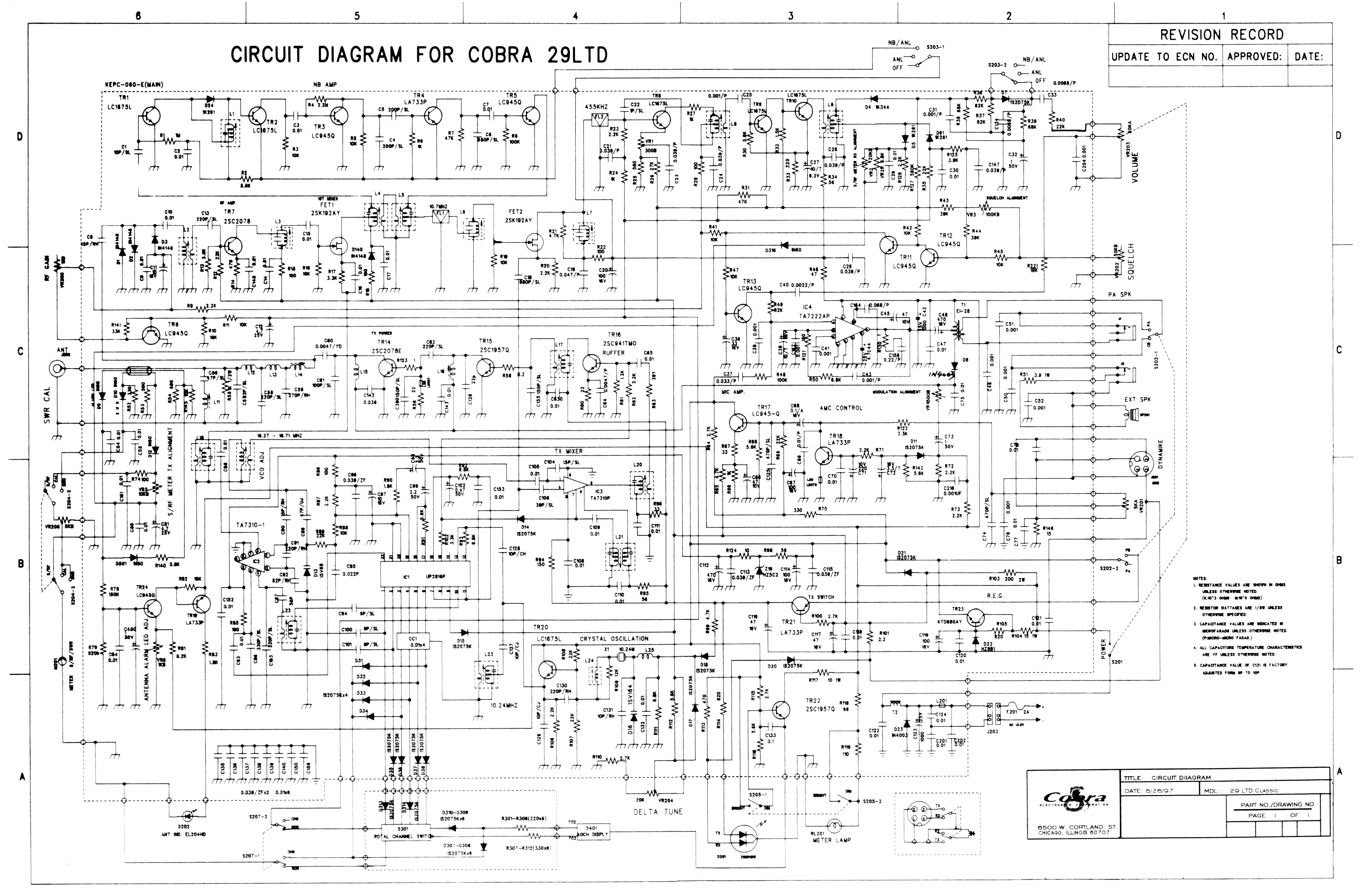

    29LTD Schematic Diagram
    29LTD Schematic Diagram

29 LTD Classic Schematic Diagram (Courtesy of Rick Jackson)



Mic Wiring

Stock
1- Shield
2- Audio
3- Transmit
4- Receive

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series

1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
