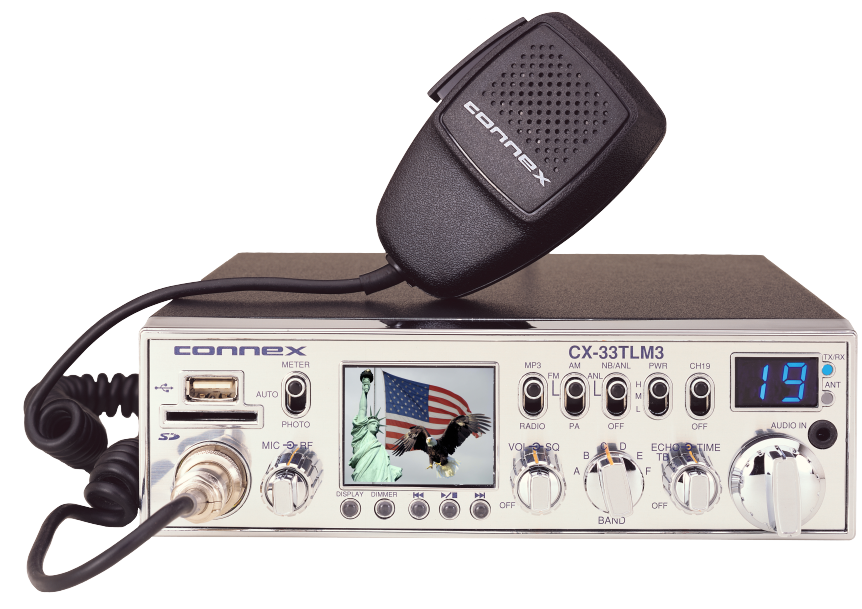

Connex CX-33TLM3
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Click Picture to see full size

Picture Tour of Radio

Frequency Conversion



Notations

There are several circuit baords added above the main board for added features. One of these is what appears to be a small audio board mounted above the 2SC827 Regulator transistor area. It has two audio circuits for the left and right channel for the MP3 player.

The parts for the 4008 divider chips etc have all been removed in lieu of the new computer control board near the Channel Selector.

Standard IRF520 dual final RF Section with a 2SB827 Modulator / Regulator - Same a most new Connex, Ranger, Galaxy, General High Power units now in production.

The rear panel has extra jacks for the MP3 player for stereo audio output or audio stereo input.

The main board is a Ranger EPT360015C

Known Limitations

The USB slot on the front panel will only handle 1 GB - If you exceed this with a larger thumb drive the unit will shut down and you have to remove power at the rear panel to revive.

The SD slot will only handle 2 GB Maximum and the same is true above.
Also the pictures must be in jpeg format to display on the TFT screen.

Stock
1- Shield  (Ground)
2- Yellow  (Audio)
3- Red      (Transmit)
4- White   (Receive)

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series

1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
