Craig 4103, 4104, 4201
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Service manual

Diagrams

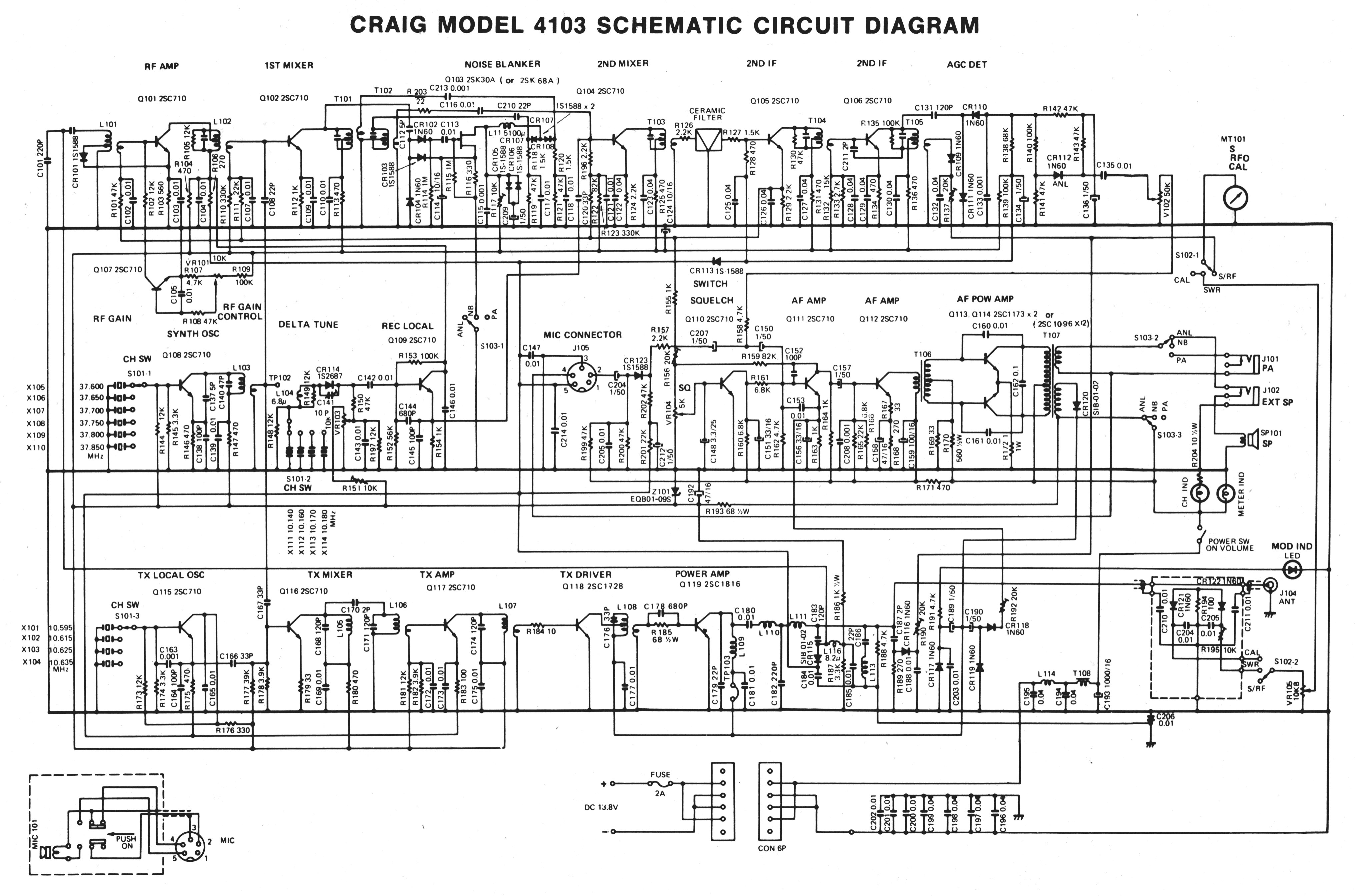

     4103 Schematic Diagram
     4103 Schematic Diagram

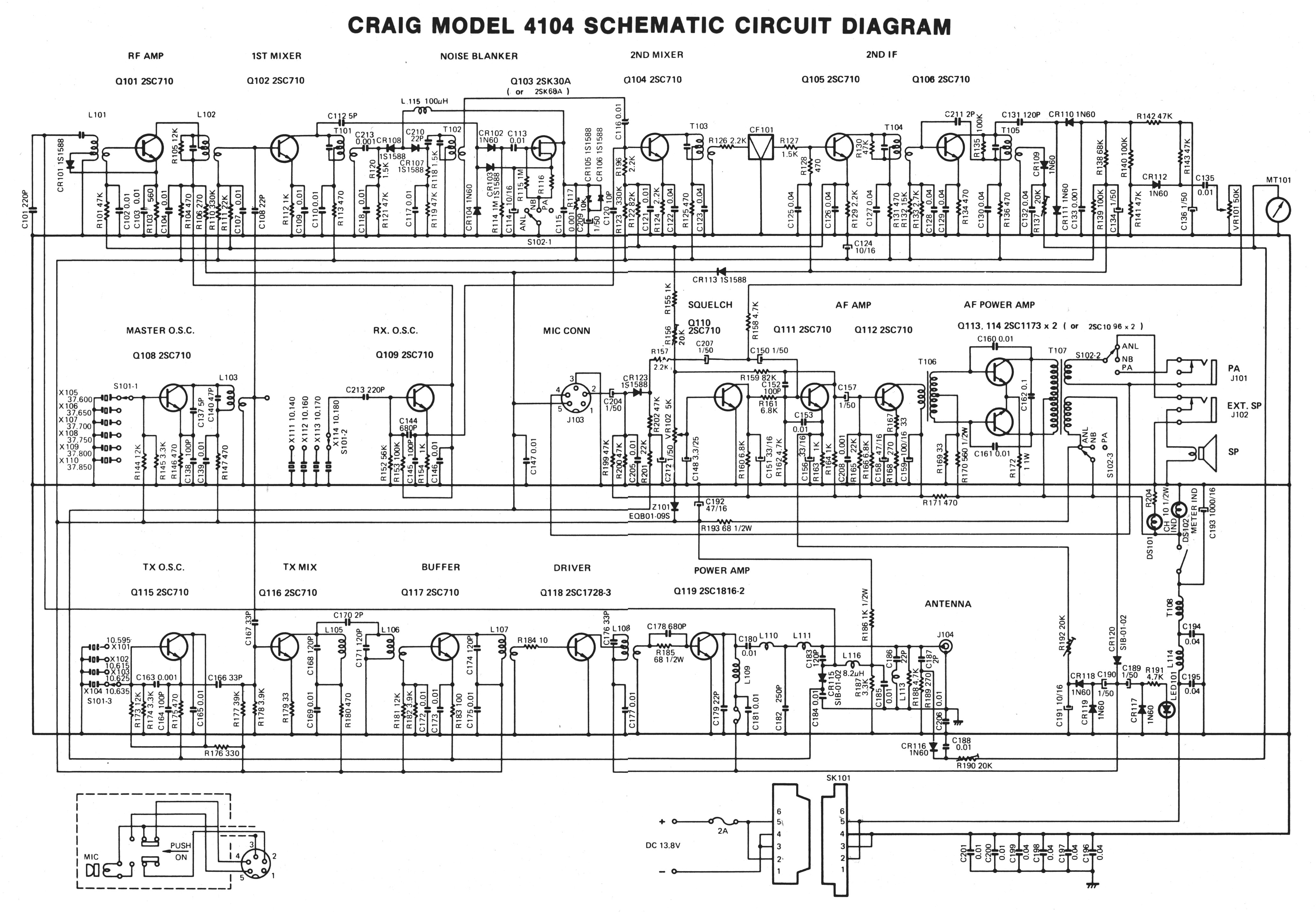

     4104 Schematic Diagram
     4104 Schematic Diagram

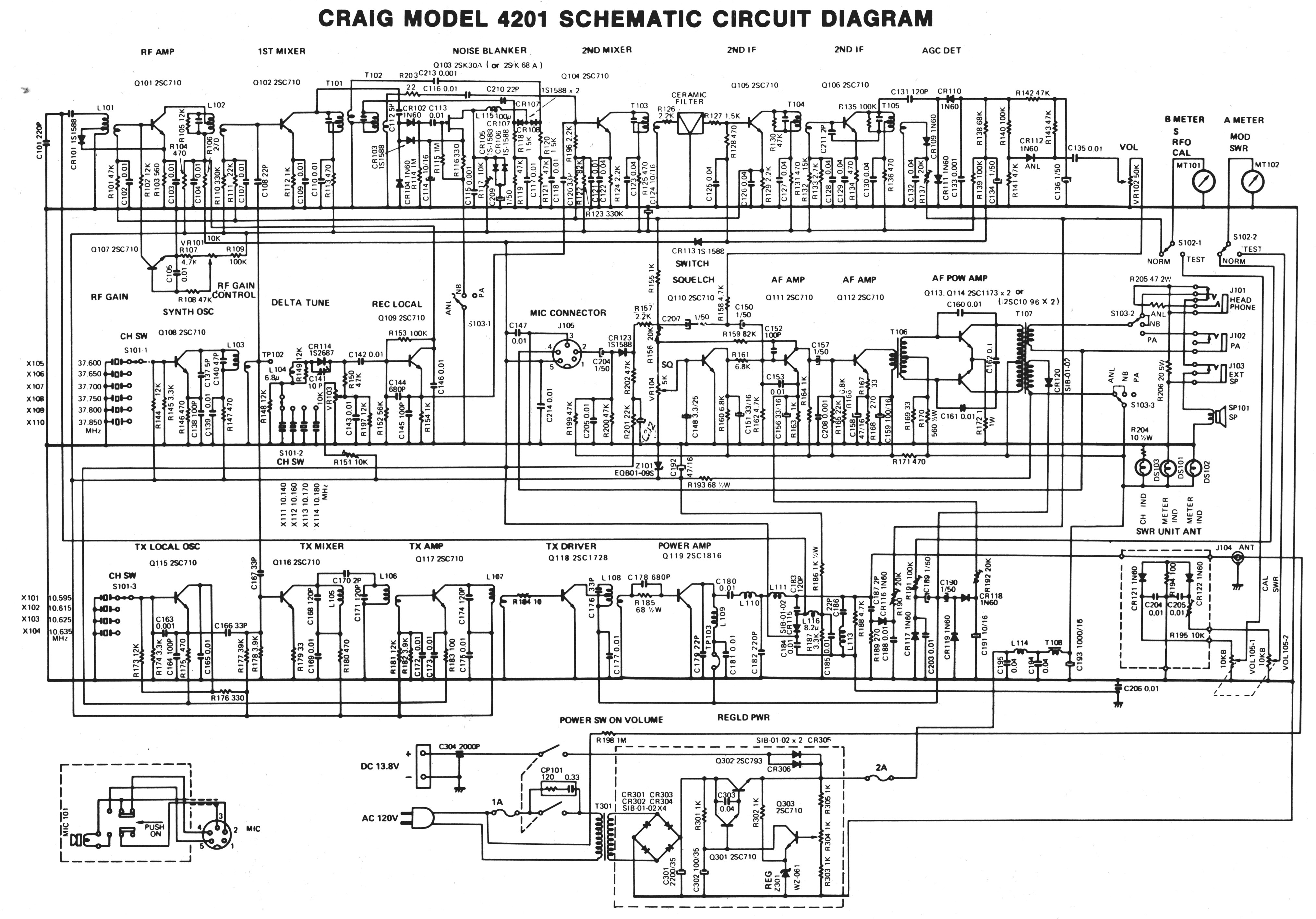

     4201 Schematic Diagram
     4201 Schematic Diagram

Mic Wiring

Stock
1- N/C
2- Audio
3- Shield
4- Receive
5- Transmit

Astatic (4 wire)
1- N/C
2- White
3- Shield
4- Black
5- Red

Astatic (6 wire)
1- N/C
2- White
3- Shield & Blue
4- Black
5- Red
Yellow NC

Daiwa EM-500
Cobra CA Series

1- N/C
2- Red
3- Shield & Black
4- Blue
5- White

Galaxy DC-521S (4 wire)
1- N/C
2- White
3- Shield
4- Black
5- Red

Galaxy CB-660EI
1- N/C
2- White
3- Shield & Black
4- Blue
5- Red

Sadelta
1- N/C
2- White
3- Shield
4- Green
5- Brown

Turner
1- N/C
2- White
3- Shield & Red
4- Black
5- Blue
Yellow NC
