ALIGNMENT PROCEDURES
     Alignment
     VCO Frequency Generation Chart

DIAGRAMS

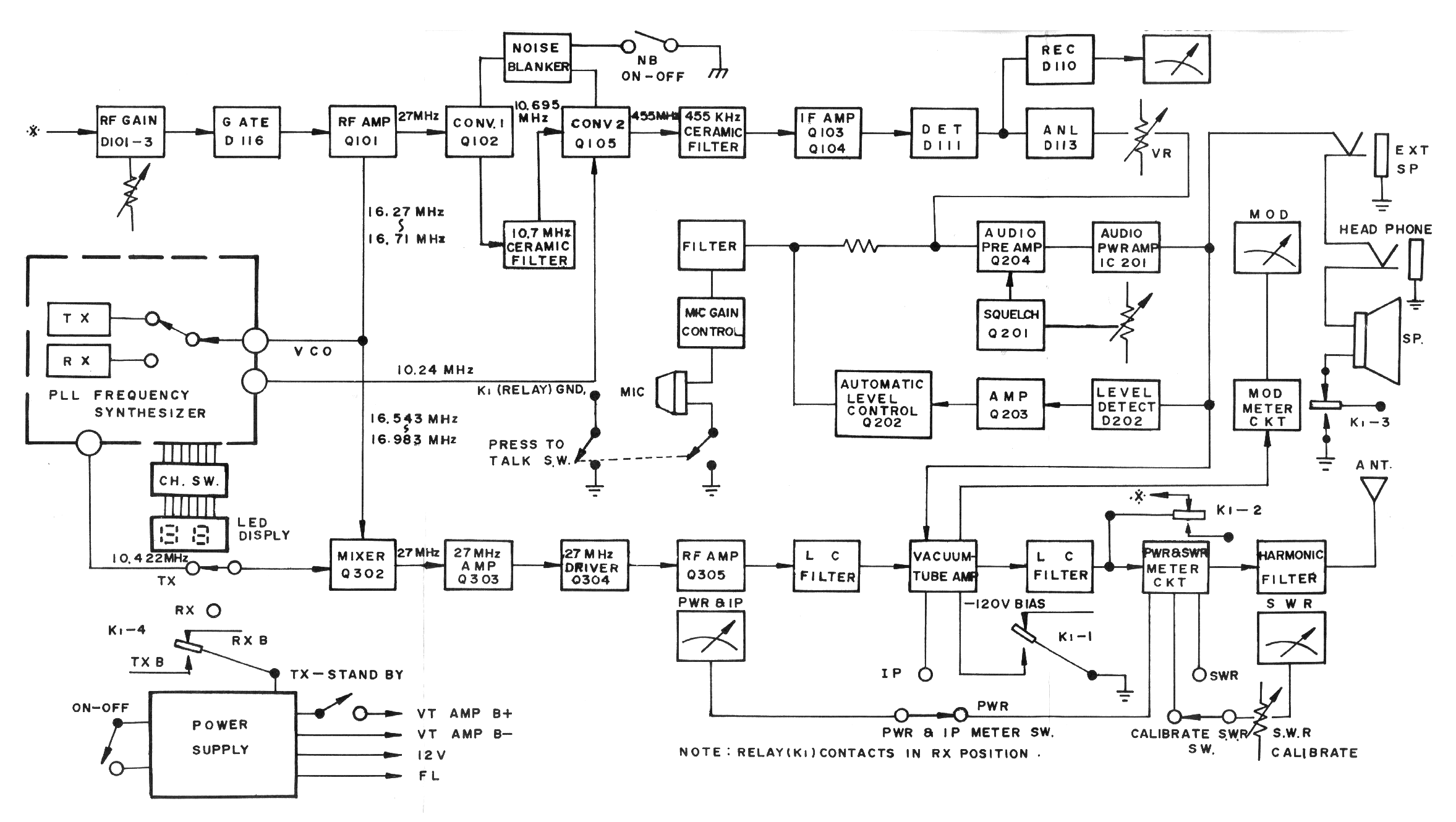

    Block Diagram

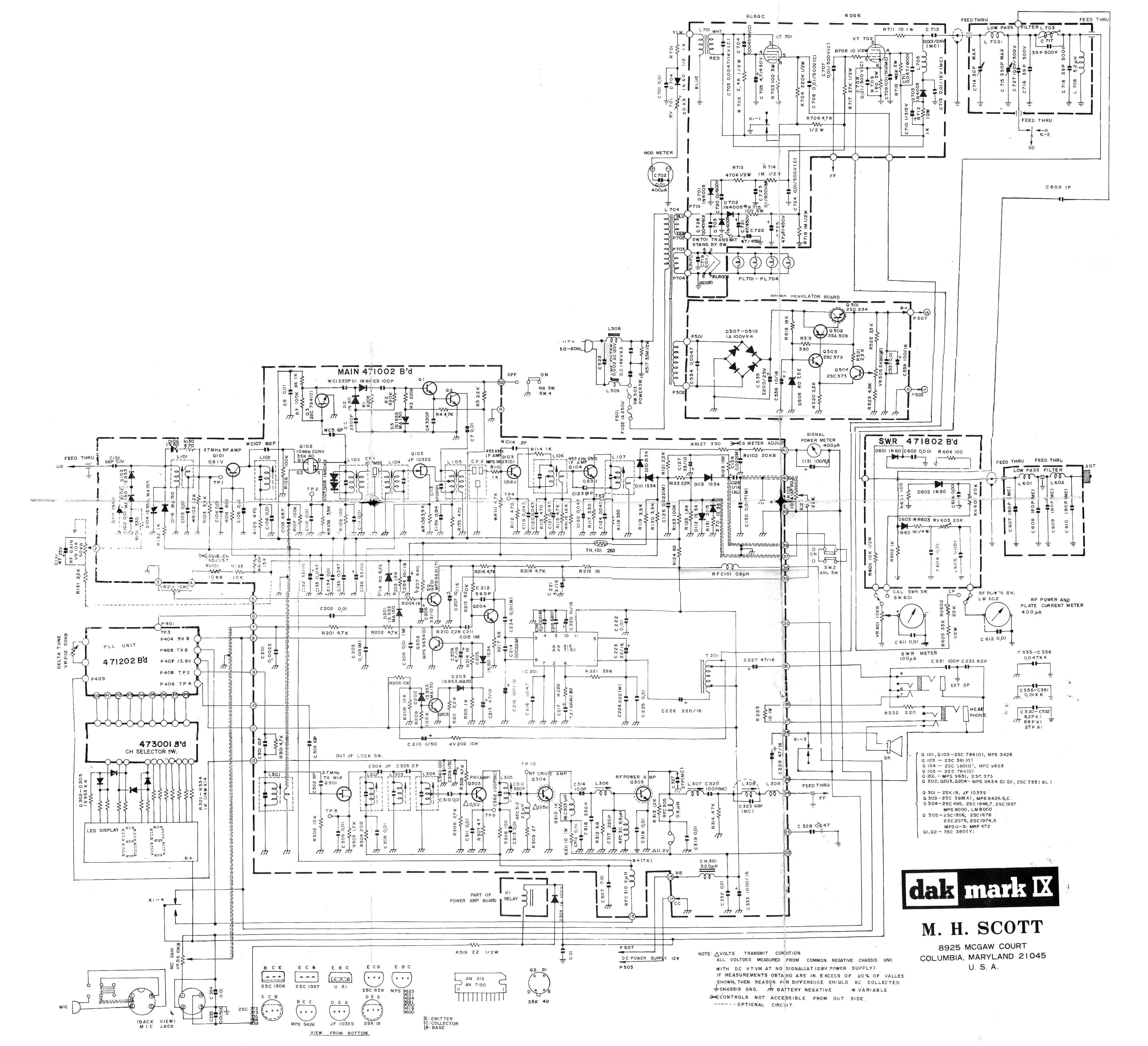

    Schematic Diagram Main (Right click and save to drive) (Some Browsers will not display)

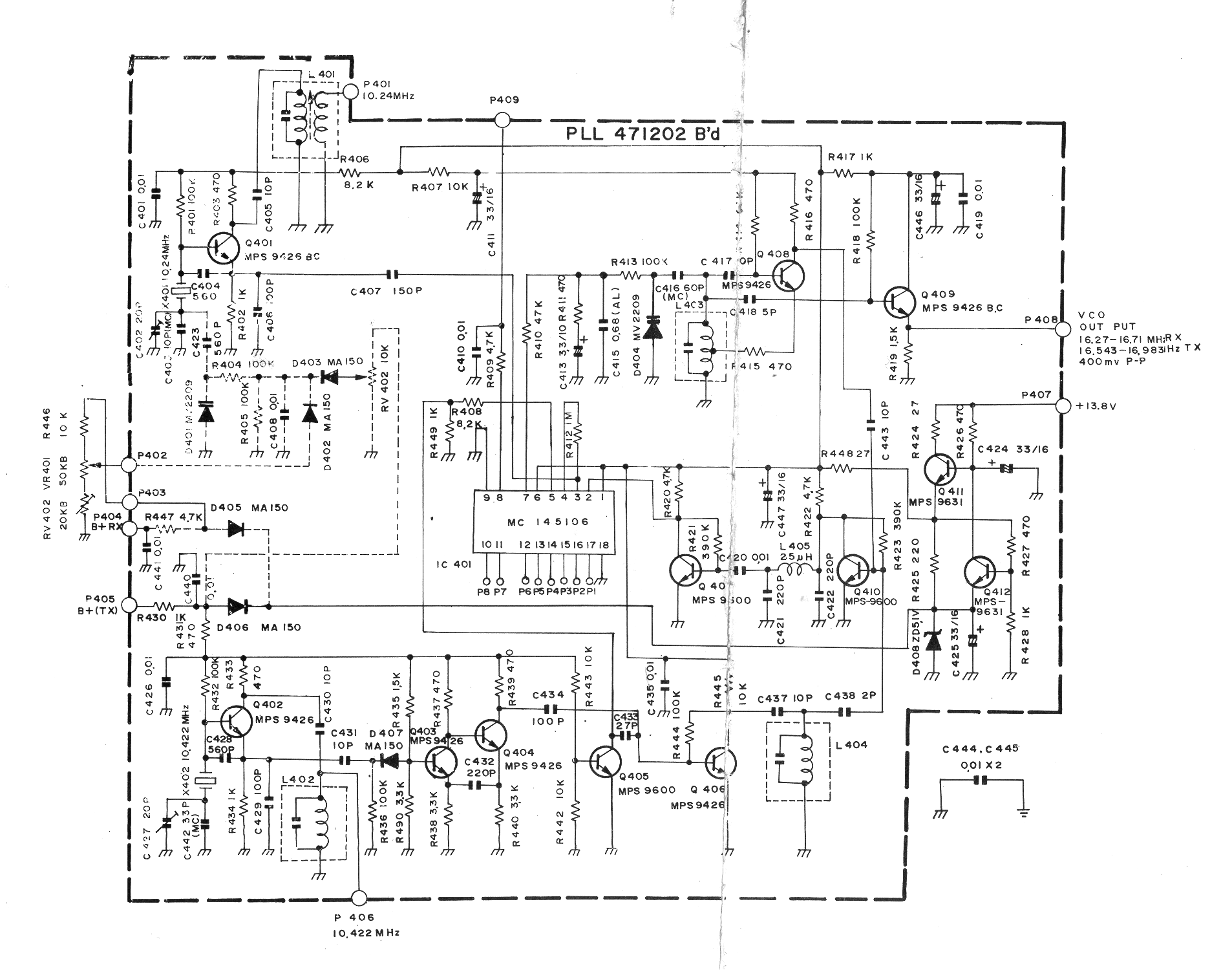

    Schematic Diagram PLL

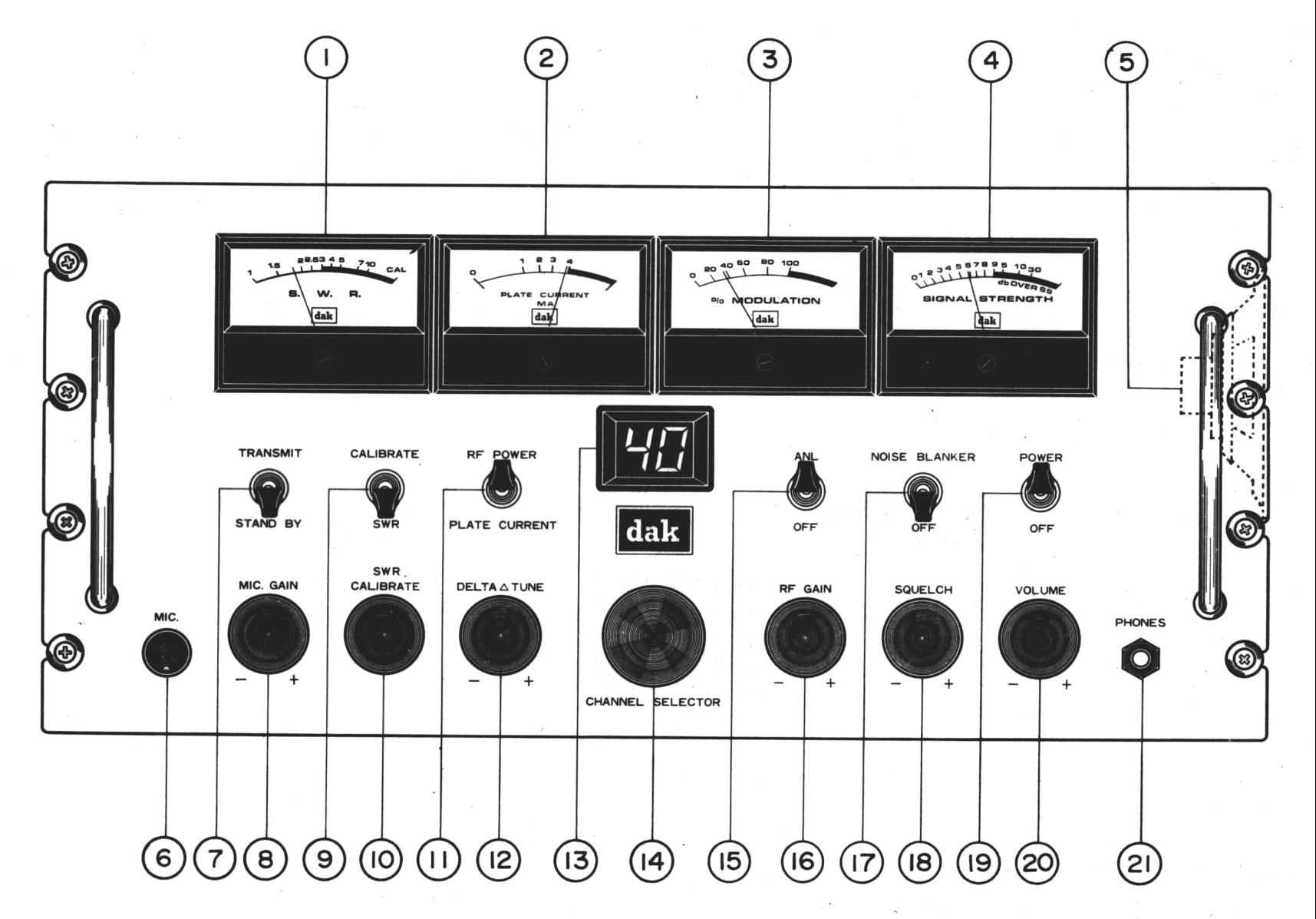

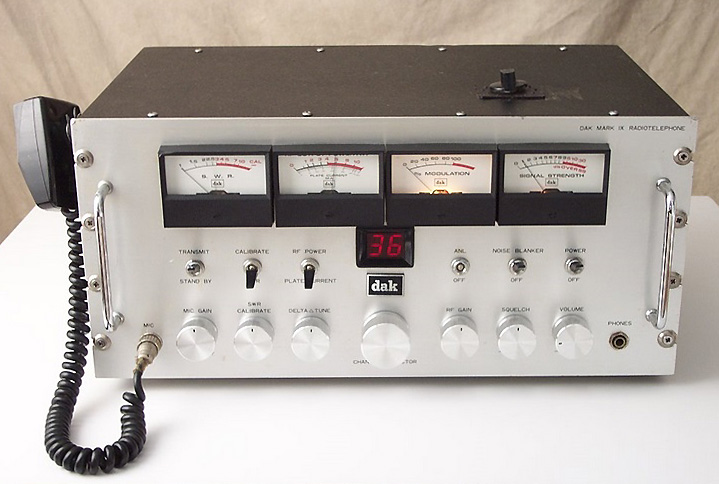

    Front View

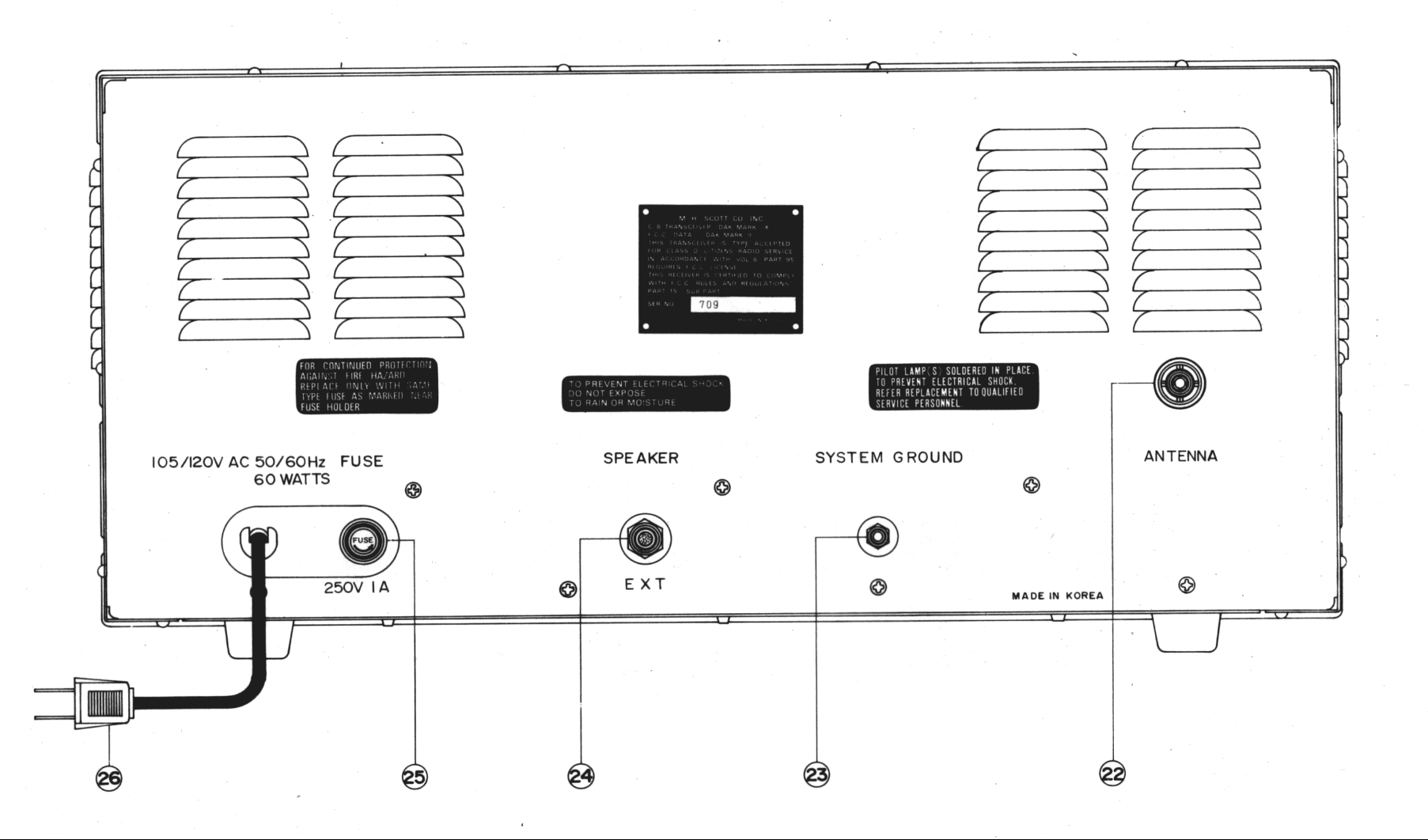

    Rear View

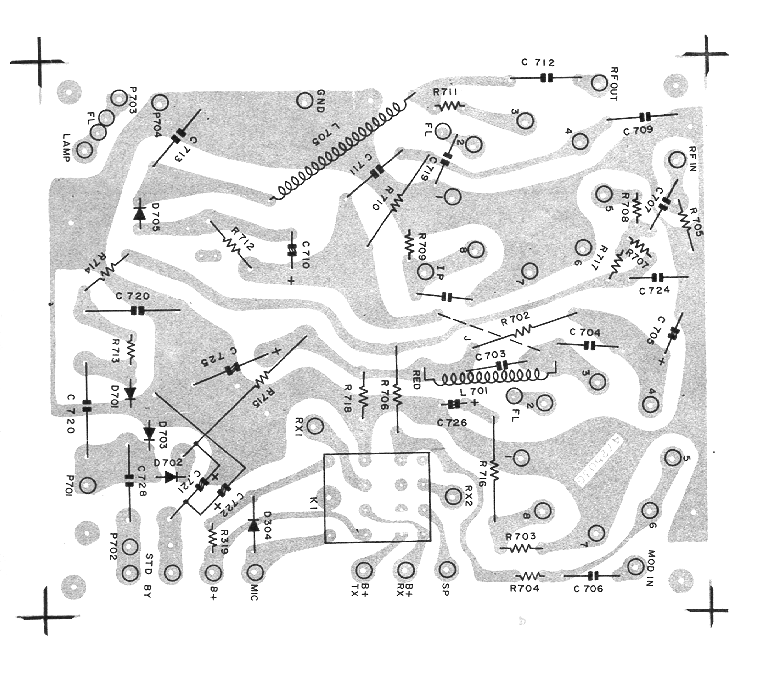

PCB Layouts

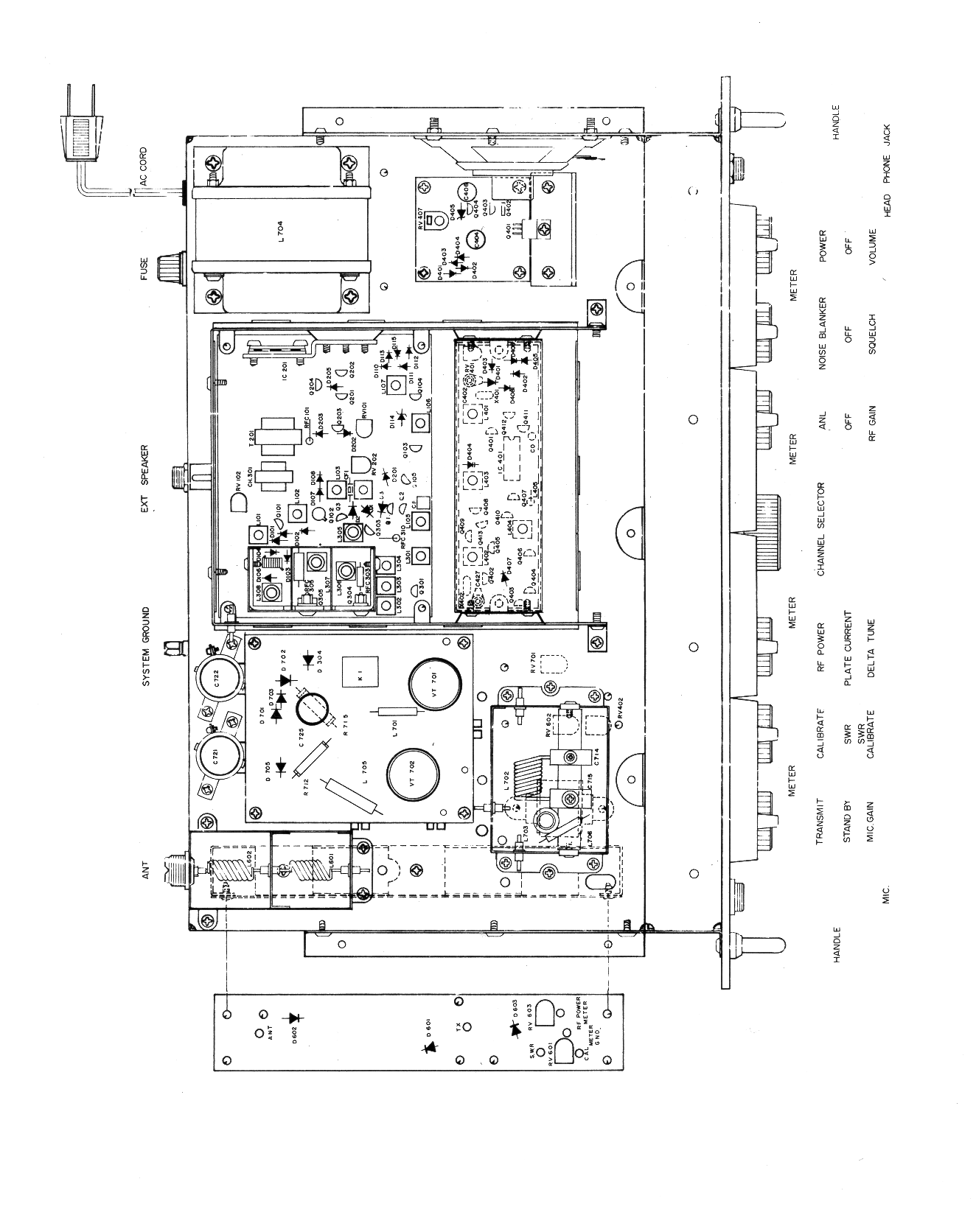

    Main Layout
    PCB Board Layouts page 1
    PCB Board Layouts page 2
    PCB Board Layouts page 3
    PCB Board Layouts page 4

Mic Wiring

Stock
1- Audio
2- Shield
3- Relay
4- Transmit

Astatic (4 wire)
1- White
2- Shield
3- Black
4- Red

Astatic (6 wire)
1- White
2- Shield
3- Blue
4- Red
Black- N/C
Yellow- N/C

Daiwa EM-500
Cobra CA Series
1- Red
2- Shield
3- Black
4- White
Blue - N/C

Galaxy DC-521S (4 wire)
1- Yellow
2- Shield
3- Black
4- Red

Galaxy CB-660EI
1- White
2- Shield
3- Black
4- Red
Black - N/C

Sadelta
1- White
2- Shield
3- Green
4- Brown

Turner
1- White
2- Shield
3- Red
4- Blue
Black - N/C
Yellow - N/C
