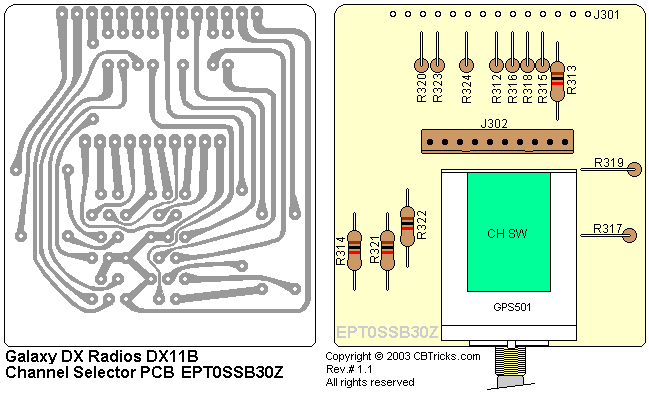

Channel Selector P.C.B. (EPT0SSB30Z)
Ref#
|
Description |
MFR.
Part No.
|
|
ROTARY SW P.C.B. |
EPTOSSB30Z
|
|
ROTARY SW P.C.B. Complete with Components |
#T-106A-P08 |
Ref#
|
Description |
MFR.
Part No.
|
R312 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R313 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R314 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R315 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R316 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R317 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R318 |
C/F/R 470 OHM 1/4W U |
RCU144714Z |
R319 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R320 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R321 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R322 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R323 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R324 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
Ref#
|
Description |
MFR.
Part No.
|
|
ROTARY SW GPS-0501 |
EWRT32000S |
Ref#
|
Description |
MFR.
Part No.
|
J302 |
PCB CONNECTOR/S 10P T |
EX07N40014 |
