Galaxy DX Radios DX11B
Documentation Project
CBTricks.com

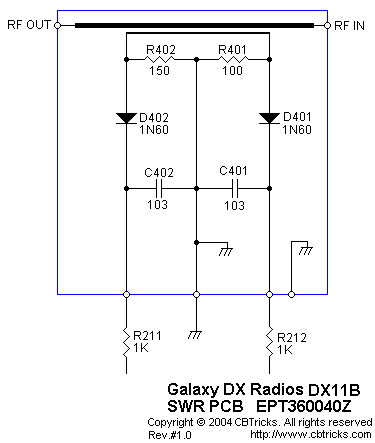

SWR PCB (EPT360040Z) Schematic

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
