Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

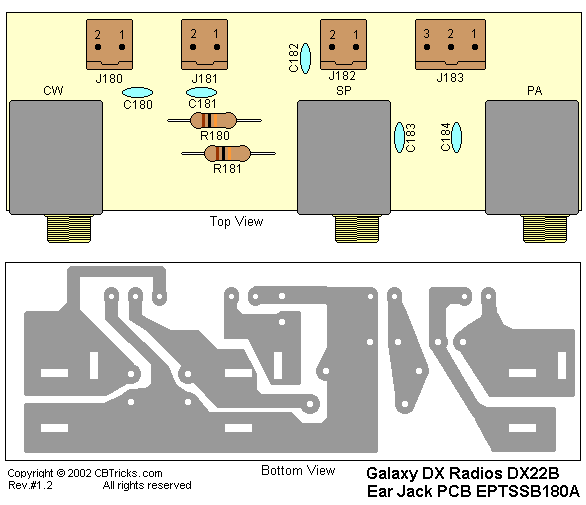

EAR Jack PCB (EPTSSB180A)
Schematic
Diagram
Ref# | Description |
MFR.
Part No.
|
Ear Jack P.C.B. EPTSSB180A |
#T-106D-P16 |
|
Ear Jack P.C.B. |
EPTSSB180A |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R180 |
C/F/R 10K OHM 1/4W M |
RCM141034A |
R181 |
C/F/R 10K OHM 1/4W M |
RCM141034A |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C180 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
C181 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
C182 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
C183 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
C184 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
Connector
Ref#
|
Description |
MFR.
Part No.
|
CW |
EAR JACK S.G-8038#01 |
EX06N41034 |
PA |
EAR JACK S.G-8038#01 |
EX06N41034 |
SP |
EAR JACK S.G-8038#01 |
EX06N41034 |
J180 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
J181 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
J182 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
J183 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
