Galaxy DX Radios DX22B
Documentation Project

CBTricks.com

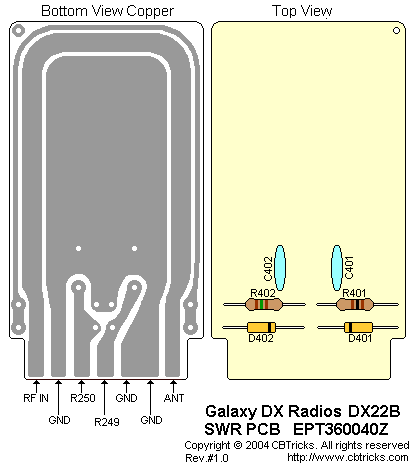

SWR PCB (EPT360040Z)
Schematic Diagram

Ref#
Description
MFR. Part No.



SWR P.C.B. EPT360040Z
Complete with Components

#T-106A-P05



P.C.B. SW 66X113X10.6

EPT360040Z

Resistors

Ref#
Description
MFR. Part No.

R401

C/F/R P-TYPE 100 OHM 1/4W P

RCP141014Z

R402

C/F/R P-TYPE 150 OHM 1/4W P

RCP141514Z

Capacitors

Ref#
Description
MFR. Part No.

C401

C/C 0.01UF 50WV SL Z

CC0501037L

C402

C/C 0.01UF 50WV SL Z

CC0501037L

Diodes

Ref#
Description
MFR. Part No.

D401

DIODE 1N60P

ED1N00060P

D402

DIODE 1N60P

ED1N00060P
