Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

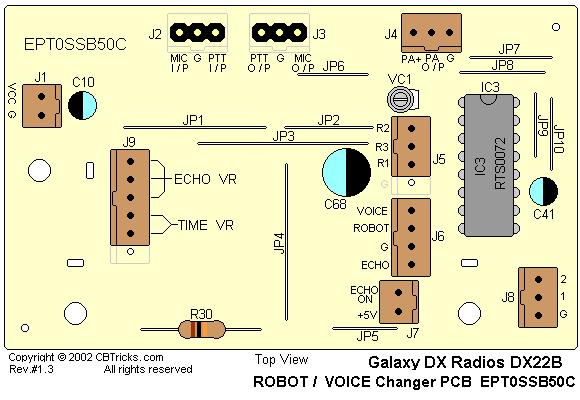

ROBOT / ECHO P.C.B. EPT0SSB50C
Trace
Layout
Ref#
|
Description |
MFR.
Part No.
|
ECHO P.C.B. Complete with Components |
#T-106O-P06 |
|
ECHO P.C.B. 80x48x1.6tmm(S) |
EPT0SSB50C |
Ref#
|
Description |
MFR.
Part No.
|
R2 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R3 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R4 |
CHIP/F/R (SMD) 18K OHM 0.1W |
RCY011834Z |
R5 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R6 |
CHIP/F/R (SMD) 39K OHM 0.1W |
RCY013934Z |
R7 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R8 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R9 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
R10 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R11 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R16 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R18 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R19 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R20 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R21 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
R23 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R24 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R25 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R26 |
CHIP/F/R (SMD) 8.2K OHM 0.1W |
RCY018224Z |
R27 |
CHIP/F/R (SMD) 82K OHM 0.1W |
RCY018234Z |
R28 |
CHIP/F/R (SMD) 8.2K OHM 0.1W |
RCY018224Z |
R29 |
CHIP/F/R (SMD) 82K OHM 0.1W |
RCY018234Z |
R30 |
C/F/R P-TYPE 10K OHM 1/4W P |
RCP141034Z |
R31 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
R33 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R34 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R35 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R37 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R38 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R39 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R40 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R41 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R42 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R43 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R44 |
CHIP/F/R (SMD) 15K OHM 0.1W 5% |
RCY011534Z |
R50 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R51 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
R52 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R53 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
R54 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R55 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R61 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R62 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R63 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R65 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
R66 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R67 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
R68 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
R69 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
VR1 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
Ref#
|
Description |
MFR.
Part No.
|
C1 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C2 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
C3 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C4 |
CHIP/C (SMD) 560P 50WV K CH |
CK1561AB5A |
C5 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C7 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C9 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C10 |
E/C 47UF 16WV Z |
CE0164767Z |
C11 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C12 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C13 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C14 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C15 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C17 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C18 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
C19 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C22 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C23 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C24 |
CHIP/C (SMD) 0.0056UF50WV Z Y5V |
CK1562AB7R |
C25 |
CHIP/C (SMD) 560P 50WV K CH |
CK1561AB5A |
C26 |
CHIP/C (SMD) 0.033UF 50WV M Z5U |
CK1333AB6U |
C27 |
CHIP/C (SMD) 560P 50WV K CH |
CK1561AB5A |
C28 |
CHIP/C (SMD) 0.047UF 50WV Z Y5V |
CK1473AB7R |
C29 |
CHIP/C (SMD) 0.0056UF50WV Z Y5V |
CK1562AB7R |
C30 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C31 |
CHIP/C (SMD) 0.047UF 50WV Z Y5V |
CK1473AB7R |
C32 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C33 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C34 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C35 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C36 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C37 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C38 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C39 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C40 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C41 |
E/C 47UF 16WV Z |
CE0164767Z |
C42 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
C43 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C44 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C45 |
CHIP/C (SMD) 5PF 50WV C CH |
CK1050AB1A |
C50 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C63 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C64 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C65 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C68 |
E/C 470UF 10WV Z |
CE0104777Z |
VC1 |
TRIMMER/C 20PF (CV38D2001) |
CV038200AZ |
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
I.C. (SMD) NJM4558M 8PIN |
YNJR04558M |
IC2 |
I.C. (SMD) ES56028S 28PIN |
YNES56028S |
IC3 |
I.C. RTS0072 16PIN |
ENRE00072Z |
Ref#
|
Description |
MFR.
Part No.
|
Q1 |
T/R (SMD) 2SD999-TP |
TY2SD0999Z |
Q2 |
T/R (SMD) RN2403-TE85L |
TYZRN2403Z |
Q3 |
T/R (SMD) RN1403-TE85L |
TYZRN1403Z |
Ref#
|
Description |
MFR.
Part No.
|
D1 |
ZENER DIODE 5.6V (SMD) |
EDZD05569Y |
D2 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
D3 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
D4 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D5 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D6 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D7 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D8 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D9 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D10 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D11 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
Ref#
|
Description |
MFR.
Part No.
|
J1 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
J2 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J3 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J5 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J6 |
PCB CONNECTOR/S 4P T PH=2.5 |
EX07N41250 |
J7 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
J8 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J9 |
JUMPER WIRE 7X9MMX7 |
WX01070709 |
ECHO/ |
PCB CONNECTOR/S 5P T PH=2.5 |
EX07N40038 |
Ref#
|
Description |
MFR.
Part No.
|
JP1 |
JUMPER WIRE 7x20x7 |
WX01070720 |
JP2 |
JUMPER WIRE 7x12x7 |
WX01070712 |
JP3 |
JUMPER WIRE 7x22x7 |
WX01070722 |
JP4 |
JUMPER WIRE 7x22x7 |
WX01070722 |
JP6 |
JUMPER WIRE 7x10x7 |
WX01070710 |
JP7 |
JUMPER WIRE 7x12x7 |
WX01070712 |
JP8 |
JUMPER WIRE 7x12x7 |
WX01070712 |
JP10 |
JUMPER WIRE 7x10x7 |
WX01070710 |
