Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

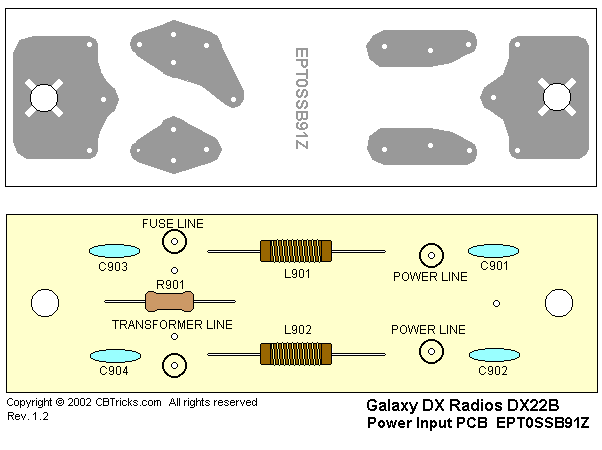

POWER INPUT P.C.B.EPTOSSB91Z
Schematic Diagram
Ref#
|
Description |
MFR.
Part No.
|
R901 |
C/F/R P-TYPE 2.2M OHM 1/2W P |
RCP122254Z |
Ref#
|
Description |
MFR.
Part No.
|
C901 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
C902 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
C903 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
C904 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
Ref#
|
Description |
MFR.
Part No.
|
L901 |
CHOKE COIL 6.8UH |
ECCHK16098 |
L901 |
TUBE 8x20mm |
WX0008020A |
L902 |
CHOKE COIL 6.8UH |
ECCHK16098 |
L902 |
TUBE 8x20mm |
WX0008020A |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
