Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

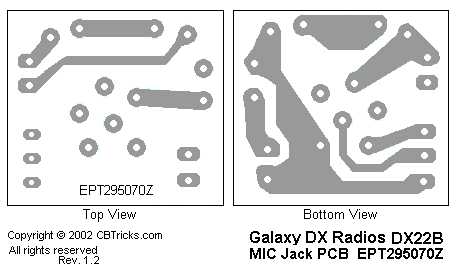

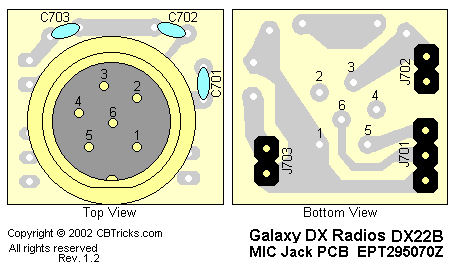

MIC JACK P.C.B. EPT295070Z
Ref#
|
Description |
MFR.
Part No.
|
|
MIC Jack PCB EPT295070Z |
#T-180E-P05
|
|
MIC Jack PCB |
EPT295070Z
|
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C701 |
C/C 0.001UF 50W V B K |
CCM501025T |
C702 |
C/C 0.001UF 50W V B K |
CCM501025T |
C703 |
C/C 0.001UF 50W V B K |
CCM501025T |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J701 |
PCB CONNECTOR/S 3P |
EX07N48244 |
J702 |
PCB CONNECTOR/S 2P |
EX07N48152 |
J703 |
PCB CONNECTOR/S 2P |
EX07N48152 |
Jack |
MIC JACK 6P |
EX06N41111 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
