Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

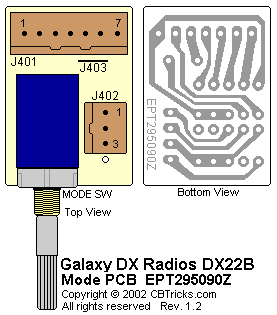

MODE Switch P.C.B. EPT295090Z
Schematic
Diagram
#T-180E-P06
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
Mode PCB EPT295090Z |
#T-180E-P06
|
|
|
Mode PCB |
EPT295090Z
|
Switch
|
Ref#
|
Description |
MFR.
Part No.
|
|
MODE SW |
ROTARY SW SRBM26024A |
EWRT32053S |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J401 |
PCB CONNECTOR/S 7P T PH=2.5 |
EX07N41261 |
|
J402 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
J403 |
JUMPER WIRE 7x6x7 |
WX01070706 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
