Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

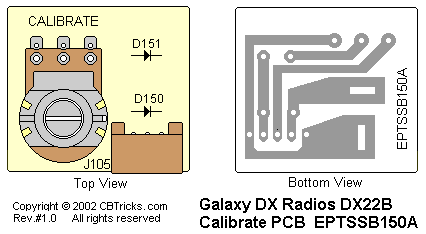

CALIBRATE VR P.C.B. (EPTSSB150A)
Schematic
Diagram
Ref# | Description |
MFR.
Part No.
|
CAL P.C.B. EPTSSB150A |
#T-106O-P04 |
|
CAL P.C.B. |
EPTSSB150A |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D150 |
DIODE 1N4148 |
ED1N04148Z |
D151 |
DIODE 1N4148 |
ED1N04148Z |
Potentiometers
Ref#
|
Description |
MFR.
Part No.
|
Calibrate |
V/R 5KB/SW |
RV50203466 |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J105 |
PCB CONNECTOR SOCKET 5P L TYPE |
EX07N48497 |
