Galaxy DX Radios DX22B
Documentation Project

CBTricks.com

RF POWER, ECHO, TIME VR PCB (EPTSSB120A)
Schematic Diagram

Ref# Description
MFR. Part No.

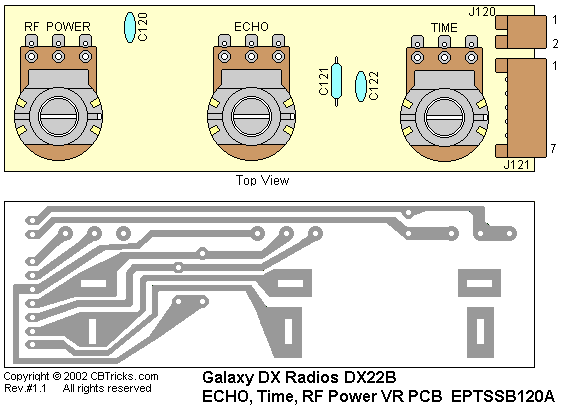

ECHO / TIME/ RF Power P.C.B. EPTSSB120A
Complete with Components

#T-106D-P10



ECHO / TIME/ RF Power P.C.B.

EPTSSB120A

Capacitors

Ref#
Description
MFR. Part No.

C120

C/C 0.001UF 50W V SL Z

CC0501027L

C121
M/C 0.0047UF 50WV K
 CM0504725Z

C122

C/C 0.001UF 50W V SL Z

CC0501027L

Potentiometers

Ref#
Description
MFR. Part No.

RF Power

V/R 50KA

RV50303461

ECHO
V/R 50KB /SW
RV50303462

TIME

V/R 50KA

RV50303461

Connectors

Ref#
Description
MFR. Part No.
J120

PCB CONNECTOR/S 2P L TYPE

EX07N48204

J121

PCB CONNECTOR/S 7P L TYPE

EX07N41281


Copyright © 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
