Pushbutton Switch PCB Layout (EPT210031Z)

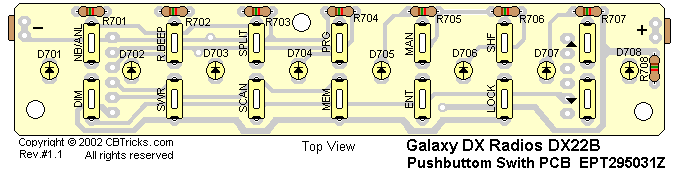

Trace Layout
Schematic Diagram

Resistors

Ref#
Description
MFR. Part No.
  R701-R708

1.5K 1/16W (P) TYPE

RCP161524Z

Misc.

Ref#
Description
MFR. Part No.


TACT SW JTP-1250

EWPS33042X



IC PIN

EX07N48414



LED YELLOW

EX01N40081

  PCB CONN. SOCK. 6P L= 21.8mm EX07N48441


RUBBER KEY PANEL

PTTURB010A
