Galaxy DX Radios DX2517
Documentation Project
CBTricks.com

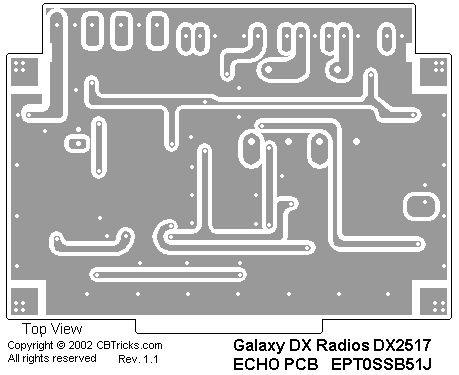

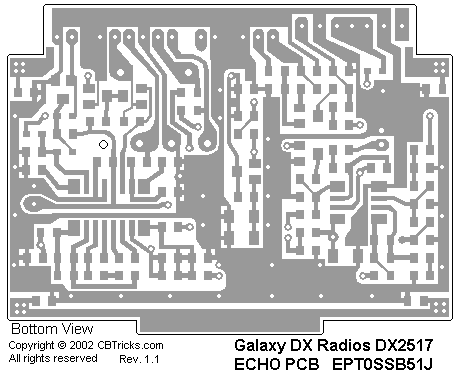

ECHO PCB (EPT0SSB51J) Trace Layout





Copyright © 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
