Galaxy
DX Radios DX2517
Documentation Project
CBTricks.com
Power Supply

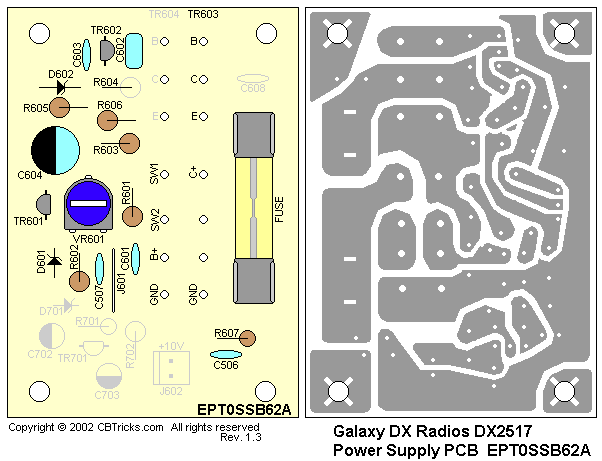

PCB EPT0SSB62A
Schematic Diagram
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R601 |
C/F/R 1.2K OHM 1W P |
RCP101224Z |
|
R602 |
C/F/R 820 OHM 1W P |
RCP108214Z |
|
R603 |
C/F/R 820 OHM 1W P |
RCP108214Z |
|
R605 |
C/F/R P-TYPE 100 OHM 1W P |
RCP101014Z |
|
R606 |
C/F/R P-TYPE 220 OHM 1W P |
RCP102214Z |
|
R607 |
C/F/R F-TYPE 10K OHM 1/4W U |
RCU141034Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C506 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C507 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C601 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C602 |
C/C 0.01UF 50WV D M |
CC0501036S |
|
C603 |
C/C 0.047UF 50WV SL Z |
CC0504737L |
|
C604 |
E/C 100UF 35WV Z |
CE0351077Z |
|
C605 |
E/C 10000UF 35WV Z |
CE0351097Z |
|
C606 |
C/C 0.022UF 100WV Z SL |
CC1002237L |
|
C607 |
C/C 0.022UF 100WV Z SL |
CC1002237L |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
TR601 |
T/R 2SD471K |
T2SD00471K |
| T/R 2SC5395 |
T2SC05395Z
|
|
|
TR602 |
T/R 2SC5395 |
T2SC05395Z |
|
TR603 |
T/R 2N6328 |
|
| T/R 2N5301 | ||
|
|
MICA INSULATOR TO-3 |
PA0100010A |
|
|
HEAT SINK COVER |
MT0SSB310X |
|
|
HEAT SINK |
MM5500100X |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D601 |
ZENER DIODE K5.6V 1W |
EDZD10569Z |
|
D602 |
ZENER DIODE K16V 1W |
EDZD10160Z |
|
|
BRIDGE RECTIFIER 10A CM1004 |
EDBGAA121Z |
|
|
SET SCREW M3x0.5Px18 |
JS033018MN |
|
|
NUT M3x2.4t |
JN243024ZS |
Pots
|
Ref#
|
Description |
MFR.
Part No.
|
|
VR601 |
S/F/R G500 OHM 10 F |
RE50100063 |
Fuses
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
FUSE 2A 250V |
EX02N40217 |
|
|
FUSE 16V 7A |
EX02N40210
|
|
|
FUSE 125V 5A |
EX02N40214 |
|
|
FUSE BRACKET EC-641 |
GZZZ50043Z |
Wire
|
Ref#
|
Description |
MFR.
Part No.
|
|
TR604 C |
LEAD WIRE #18 250MM RED 5:5 |
WH0225005Z |
|
TR604 E |
LEAD WIRE #18 250MM YELLOW 5:5 |
WH0425005Z |
|
TR604 B |
LEAD WIRE #18 250MM WHITE 5:05 |
WH0925005Z |
Transformer
|
Ref#
|
Description |
MFR.
Part No.
|
|
T/F EI-86 110V/220V |
ETP8620129 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
