Galaxy DX Radios DX2517
Documentation Project

CBTricks.com

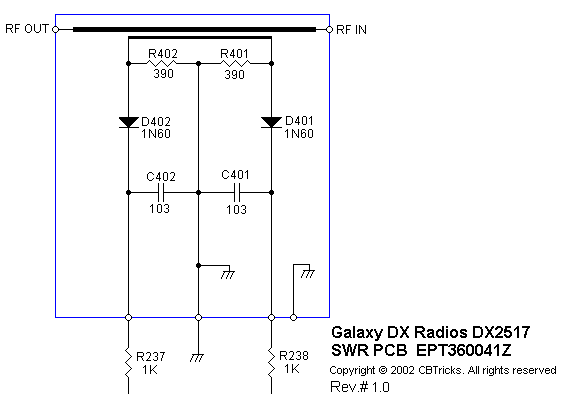

SWR P.C.B. (EPT360041Z) Schematic




Copyright © 2002 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
