Galaxy
DX Radios DX2517
Documentation Project
CBTricks.com

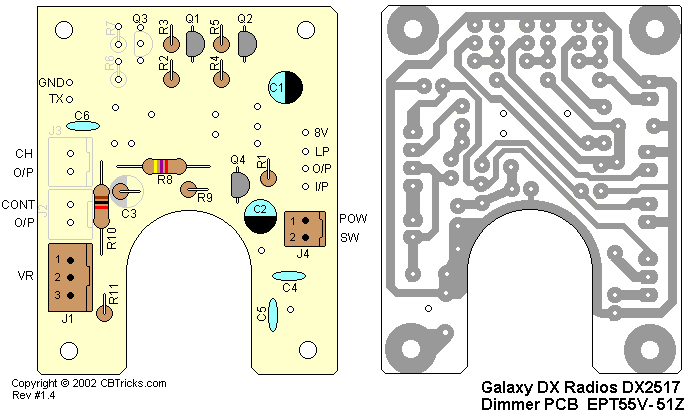

Dimmer PCB (EPT55V-51Z)
Ref. No. | Description | MFR. Part No. |
DIMMER P.C.B. 42x52xl.6tmm(S) |
EPT055V51Z |
|
R1 |
C/F/R 47 OHM 1/4W U |
RCU144704Z |
R2 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
R3 |
C/F/R 3.3K OHM 1/4 U |
RCU143324Z |
R4 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
R5 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
R8 |
C/F/R 4.7K OHM 1/4W M |
RCM144724B |
R9 |
C/F/R 47K OHM- 1/4W U |
RCU144734Z |
R10 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R11 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
Ref. No. | Description | MFR. Part No. |
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
C3 |
E/C 47UF 16WV Z |
CE0164767Z |
C4 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
C5 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
C6 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
Ref. No. | Description | MFR. Part No. |
Q1 |
TR 2SC945P |
T2SC00945P |
Q2 |
TR 2SC945P |
T2SC00945P |
Q4 |
TR 2SC945P |
T2SC00945P |
Ref. No. | Description | MFR. Part No. |
J1 |
PCB CONNECTOR/S 3P T |
EX07N41227 |
J4 |
PCB CONNECTOR/S 2P |
EX07N41226 |
