Galaxy
DX Radios DX2517
Documentation Project
CBTricks.com

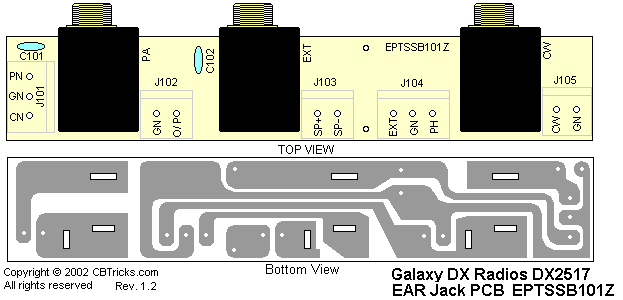

EAR JACK P.C.B EPTSSB101Z
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
EAR |
C/F/R 39 OHM 1/2WP |
RCP123904Z |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
EAR JACK S.G-8038#01 |
EX06N41034 |
Wire
|
Ref#
|
Description |
MFR.
Part No.
|
|
CW1 |
LEAD WIRE #26 170MM BLACK 5:05 |
WL0017005Z |
|
PA1 |
LEAD WIRE #26 110MM BLACK 5:051 |
WL0011005Z |
|
PA2 |
LEAD WIRE #26 100MM RED 5:5 |
WL0210005Z |
|
SP1 |
LEAD WIRE #26 140MM BLUE 5:05 |
WL0614005Z |
|
SP2-EAR JACK |
LEAD WIRE #26 400MM BROWN 5:05 |
WL0140005Z |
|
SP3-SP |
LEAD WIRE #26 480MM GREEN 5:05 |
WL0548005Z |
|
EAR JACK-MAIN PCB |
LEAD WIRE #26 400MM YELLOW 5:5 |
WL0440005Z |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
EARPHONE(2) |
SET SCREW M3x0.5Px8 |
JS053008MB |
|
EARPHONE |
WASHER 6x7x10.8t |
XZZZ90057Z |
|
EAR PHONE(3) |
INSULATE WASHER 6QX11.5X0.5T |
JW306011EY |
|
|
EARPHONE COVER |
QM5500030A |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
