Galaxy
DX Radios DX2517 (MOSFET Final)
Documentation Project
CBTricks.com
DISPLAY P.C.B. EPT0SSB42C
Trace Layout

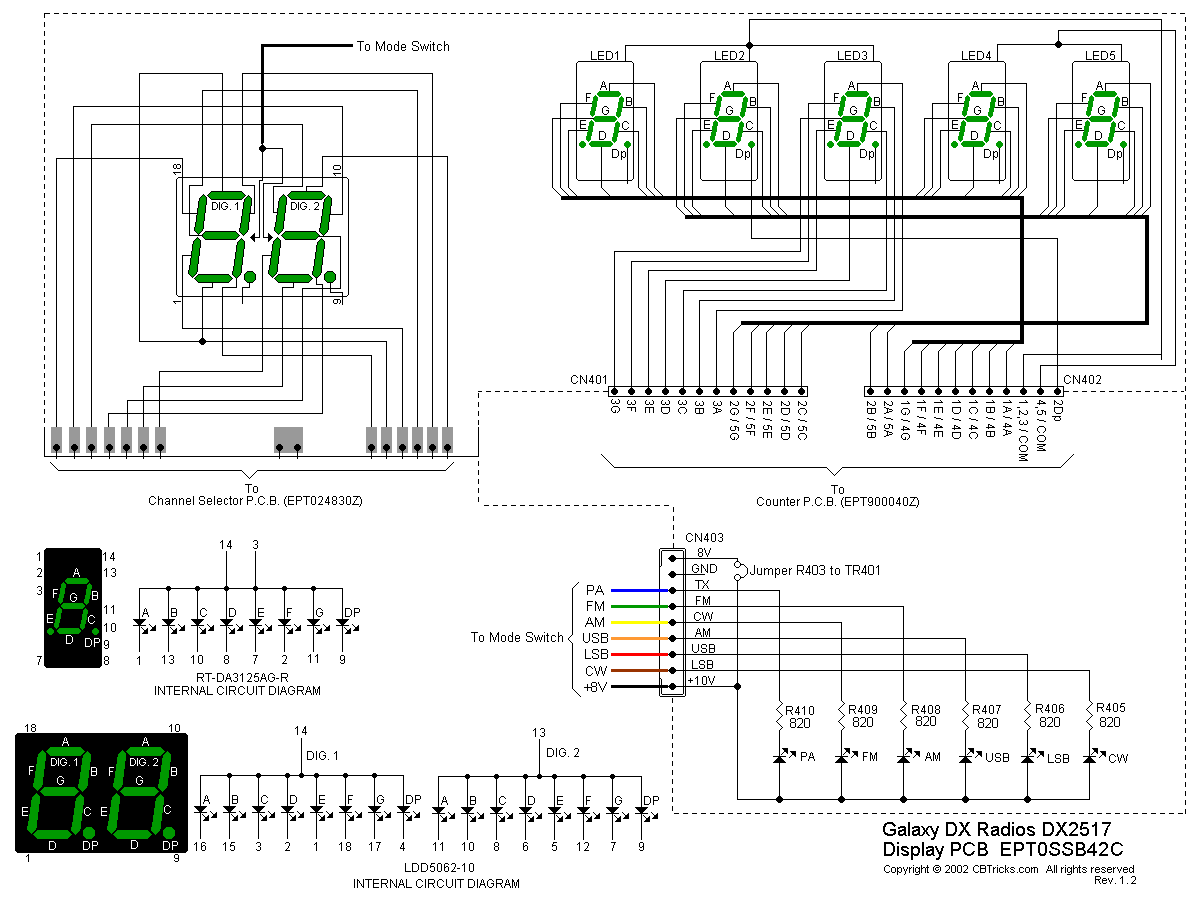

Schematic
Ref#
|
Description |
MFR.
Part No.
|
|
DISPLAY P.C.B. |
|
|
DISPLAY PCB 119x55x1.6tmm (d) |
EPT0SSB42C |
Ref#
|
Description |
MFR.
Part No.
|
R405 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
R406 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
R407 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
R408 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
R409 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
R410 |
C/F/R 820 OHM 1/16W P |
RCP168214Z |
Ref#
|
Description |
MFR.
Part No.
|
LED1 |
LED DISPLAY LSD3922(GREEN) |
EX03N40485 |
LED2 |
LED DISPLAY LSD3922(GREEN) |
EX03N40485 |
LED3 |
LED DISPLAY LSD3922(GREEN) |
EX03N40485 |
LED4 |
LED DISPLAY LSD3922(GREEN) |
EX03N40485 |
LED5 |
LED DISPLAY LSD3922(GREEN) |
EX03N40485 |
Ref#
|
Description |
MFR.
Part No.
|
LED1 |
DISPLAY HOLDER H10311 |
GZZZ50173Z |
LED2 |
DISPLAY HOLDER H10311 |
GZZZ50173Z |
LED3 |
DISPLAY HOLDER H10311 |
GZZZ50173Z |
LED4 |
DISPLAY HOLDER H10311 |
GZZZ50173Z |
LED5 |
DISPLAY HOLDER H10311 |
GZZZ50173Z |
Ref#
|
Description |
MFR.
Part No.
|
CN403 |
PCB CONNECTOR/S 9P PH=2 |
EX07N48543 |
Ref#
|
Description |
MFR.
Part No.
|
CN401 |
PCB CONNECTOR/S 12P PH=2mm |
EX07N48928 |
CN402 |
PCB CONNECTOR/S 12P PH=2mm |
EX07N48928 |
Ref#
|
Description |
MFR.
Part No.
|
R403-TR401 |
JUMPER WIRE 7x12MMx7 |
WX01070712 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
