Galaxy DX Radios DX2517 (MOSFET Final)
Documentation Project

CBTricks.com

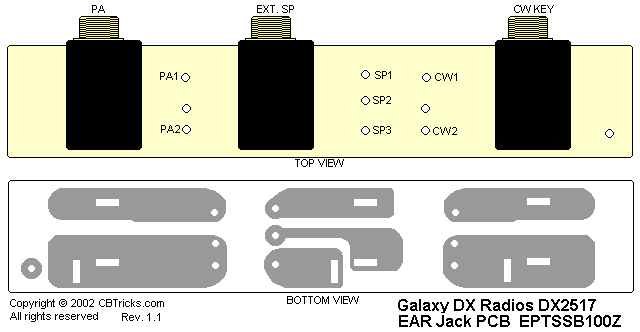

EAR JACK P.C.B EPTSSB100Z
Schematic Diagram



Ref#
Description
MFR. Part No.

EAR JACK P.C.B    EPTSSB100Z

EAR JACK P.C.B.   G73x13x1.6tmm(S)

EPTSSB100Z



Ref#
Description
MFR. Part No.

EAR JACK S.G-8038#01

EX06N41034



Ref#
Description
MFR. Part No.

PA2

LEAD WIRE #26 100MM RED 5:5

WL0210005Z

PA1

LEAD WIRE #26 110MM BLACK 5:5

WL0011005Z

SP1

LEAD WIRE #26 140MM BLUE 5:5

WL0614005Z

CW1

LEAD WIRE #26 170MM BLACK 5:5

WL0017005Z

SP2-EAR JACK

LEAD WIRE #26 UL 500MM YELLOW 5:5

WL0450005Z

SP3-SP

LEAD WIRE #26 480MM GREEN 5:5

WL0548005Z
