Documentation Project
CBTricks.com
CPU P.C.B. DPT295042Z
Trace Layout
Schematic Diagram
Galaxy
DX Radios DX2527
Documentation Project
CBTricks.com

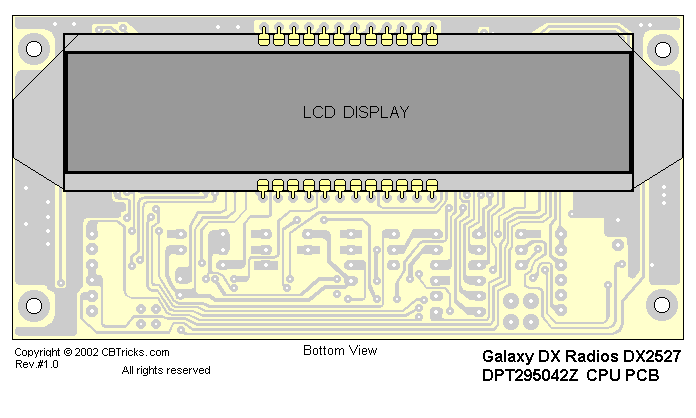

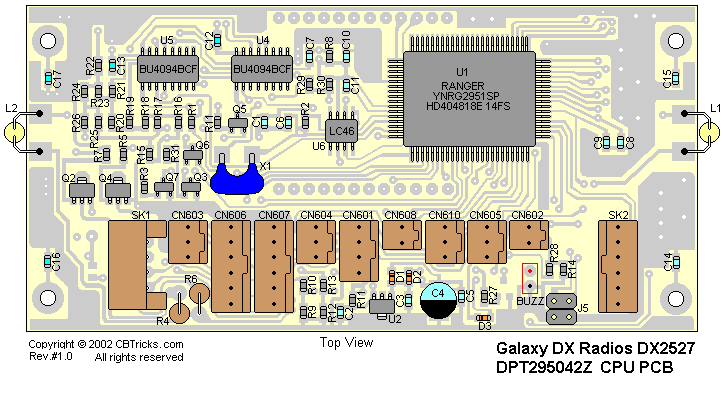

CPU P.C.B. DPT295042Z
Trace
Layout
Schematic Diagram
| Ref# | Description |
MFR.
Part No.
|
|
CPU PCB DPT295042Z |
#T-106R-D10 |
|
|
CPU PCB |
DPT295042Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R601 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R602 |
CHIP/F/R (SMD) 1M OHM 0.1W |
RCY011054Z |
|
R603 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R604 |
C/F/R F-TYPE 82 OHM 1/2W |
RCU128204Z |
|
R605 |
CHIP/F/R (SMD) 8.2K OHM 0.1W |
RCY018224Z |
|
R606 |
C/F/R 56 OHM 1/2W U |
RCU125604Z |
|
R607 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
|
R608 |
CHIP/F/R (SMD) 470K OHM 0.1W |
RCY014744Z |
|
R609 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R610 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R611 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R612 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R613 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R614 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
|
R615 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R616 |
CHIP/F/R (SMD) 27K OHM 0.1W 5% |
RCY012734Z |
|
R617 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R618 |
CHIP/F/R (SMD) 27K OHM 0.1W 5% |
RCY012734Z |
|
R619 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R620 |
CHIP/F/R (SMD) 27K OHM 0.1W 5% |
RCY012734Z |
|
R621 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R622 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R623 |
CHIP/F/R (SMD) 27K OHM 0.1W 5% |
RCY012734Z |
|
R624 |
CHIP/F/R (SMD) 27K OHM 0.1W 5% |
RCY012734Z |
|
R625 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R626 |
CHIP/F/R (SMD) 56K OHM 0.1W |
RCY015634Z |
|
R627 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R628 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R629 |
CHIP/F/R (SMD) 33K OHM 0.1W |
RCY013334Z |
|
R630 |
CHIP/F/R (SMD) 150K OHM 0.1W |
RCY011544Z |
|
R631 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C601 |
CHIP/C (SMD) 33PF 50WV J CH |
CK1330AB4A |
|
C602 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C603 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C604 |
E/C 220UF 10WV Z |
CE0102277Z |
|
C605 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C606 |
CHIP/C (SMD) 56PF 50WV J CH |
CK1560AB4A |
|
C607 |
CHIP/C (SMD) 0.22UF 50WV Z Y5V |
CK1224AB7R |
|
C608 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
|
C609 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
|
C610 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C611 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C612 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C613 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C614 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C615 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C616 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
|
C617 |
CHIP/C (SMD) 0.1UF 50WV Z F Y5V |
CK1104AB7R |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
U601 |
I.C. (RANGER) HD404818E14FS 80PIN |
YNRG2951SP |
|
U602 |
I.C. (SMD) AN8005M-E2 3PIN |
YNMA08005M |
|
U604 |
I.C. (SMD) BU4094BF 16 PIN |
YNRO04094B |
|
U605 |
I.C. (SMD) BU4094BF 16 PIN |
YNRO04094B |
|
U606 |
I.C. (SMD)(EXEL) KXL93LC46P 8PIN |
YNEX93L46P |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q602 |
T/R (SMD) 2SD999-TP |
TY2SD0999Z |
|
Q603 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q604 |
T/R (SMD) 2SD999-TP |
TY2SD0999Z |
|
Q605 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q606 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q607 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D601 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D602 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D603 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
CN601 |
PCB CONNECTOR/S 4P T PH=2.5 |
EX07N41250 |
|
CN602 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
|
CN603 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
CN604 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
CN605 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
CN608 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
|
CN610 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
SK601 |
PCB CONNECTOR/S 6P L TYPE |
EX07N41280 |
|
SK602 |
PCB CONNECTOR/S 6P T PH=2.5 |
EX07N41266 |
|
JP601/602(J5) |
PCB CONNECTOR/S 4P |
EX07N48440 |
|
SHORT1 |
PCB CONNECTOR/H SHORT PIN (2P) |
EX07N48151 |
|
SHORT2(J5) |
PCB CONNECTOR/H SHORT PIN (2P) |
EX07N48151 |
Miss.
|
Ref#
|
Description |
MFR.
Part No.
|
|
LP601 |
LAMP 5V 90mA |
EX01N40080 |
|
LP602 |
LAMP 5V 90mA |
EX01N40080 |
|
BZ601 |
BUZZER PKM17EW-4000 |
EX14N46511 |
|
DISPLAY |
LCD DISPLAY MT-628PAT |
EX03N40460 |
|
X601 |
CERAMIC RESONATOR 4.0MHz |
EX14N46510 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
