MOD Meter P.C.B. EPT00GR60Z
Schematic Diagram

Ref# Description
MFR. Part No.

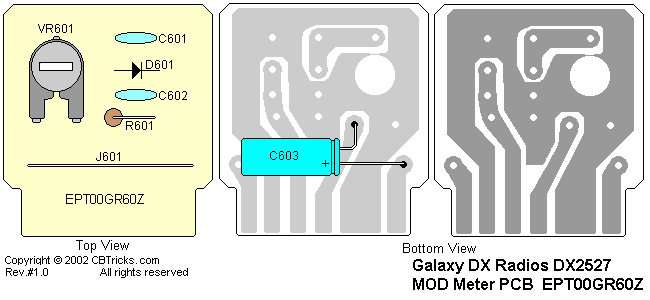

MOD Meter PCB EPT00GR60Z
Complete with Components

#T-106N-P08



MOD Meter PCB

EPT00GR60Z

Resistors

Ref#
Description
MFR. Part No.

R601

C/F/R 6.8K OHM 1/4W U

RCU146824Z

Potentiometers

Ref#
Description
MFR. Part No.

VR601

S/F/R 1K OHM L

RE10200003

Capacitors

Ref#
Description
MFR. Part No.

C226

E/C 10UF 25WV Z

CE0251067Z

C601

C/C 0.001UF 50W V SL Z

CC0501027L

C602

C/C 0.001UF 50W V SL Z

CC0501027L

C603

E/C 10UF 25WV Z

CE0251067Z

Diodes

Ref#
Description
MFR. Part No.

D601

DIODE 1N4148

ED1N04148Z

Jumper Wire

Ref#
Description
MFR. Part No.

J601

JUMPER WIRE 7x20x7

WX01070720
