Galaxy
DX Radios DX2527
Documentation Project
CBTricks.com

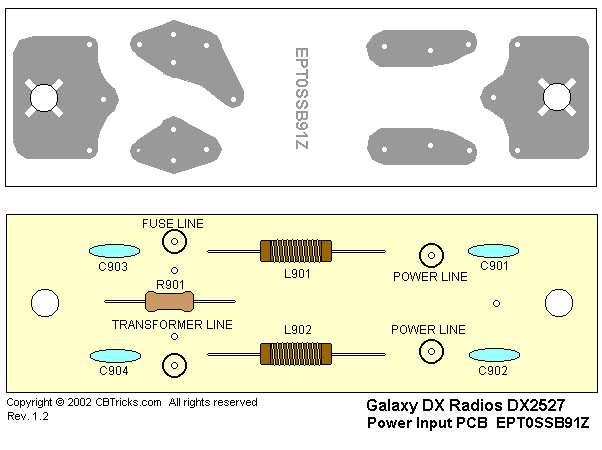

Power Input P.C.B. EPTOSSB91Z
Schematic
Diagram
| Ref# | Description |
MFR.
Part No.
|
|
Power Input PCB EPTOSSB91Z |
#T-106A-P09 |
|
|
Power Input PCB |
EPTOSSB91Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R901 |
C/F/R P-TYPE 2.2M OHM 1/2W P |
RCP122254Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C901 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
|
C902 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
|
C903 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
|
C904 |
HV DISC/C .001UF DD0505E102Z 1KMSS1 |
CX0071027Z |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L901 |
CHOKE COIL 6.8UH |
ECCHK16098 |
|
L901 |
TUBE 8x20mm |
WX0008020A |
|
L902 |
CHOKE COIL 6.8UH |
ECCHK16098 |
|
L902 |
TUBE 8x20mm |
WX0008020A |
