Galaxy
DX Radios DX2527
Documentation Project
CBTricks.com

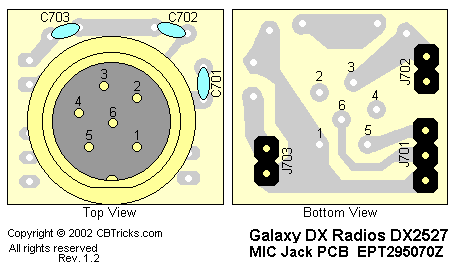

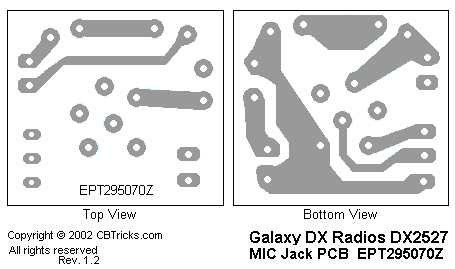

MIC JACK P.C.B. EPT295070Z
| Ref# | Description |
MFR.
Part No.
|
|
MIC Jack PCB EPT295070Z |
#T-180E-P05 |
|
|
MIC Jack PCB |
EPT295070Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C701 |
C/C 0.001UF 50W V B K |
CCM501025T |
|
C702 |
C/C 0.001UF 50W V B K |
CCM501025T |
|
C703 |
C/C 0.001UF 50W V B K |
CCM501025T |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J701 |
PCB CONNECTOR/S 3P |
EX07N48244 |
|
J702 |
PCB CONNECTOR/S 2P |
EX07N48152 |
|
J703 |
PCB CONNECTOR/S 2P |
EX07N48152 |
|
Jack |
MIC JACK 6P |
EX06N41111 |
