Galaxy DX Radios DX2527
Documentation Project

CBTricks.com

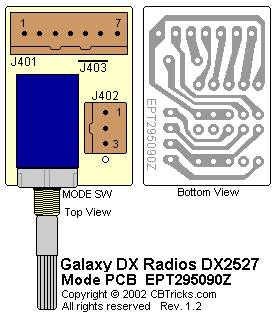

MODE Switch P.C.B. EPT295090Z
Schematic Diagram

Ref# Description
MFR. Part No.


Mode PCB EPT295090Z
Complete with Components

#T-180E-P06



Mode PCB

EPT295090Z

Switch

Ref#
Description
MFR. Part No.

MODE SW

ROTARY SW SRBM26024A

EWRT32053S

Connectors

Ref#
Description
MFR. Part No.

J401

PCB CONNECTOR/S 7P T PH=2.5

EX07N41261

J402

PCB CONNECTOR/S 3P T PH=2.5

EX07N41216

J403

JUMPER WIRE 7x6x7

WX01070706
