Galaxy DX Radios DX2527
Documentation Project

CBTricks.com

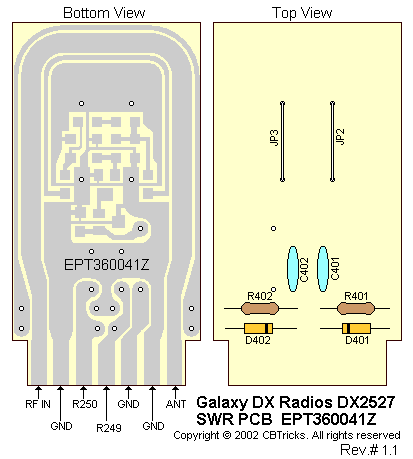

SWR P.C.B. EPT360041Z
Schematic

Ref# Description
MFR. Part No.


SWR PCB EPT360041Z
Complete with Components

#T-106T-P04



SWR PCB

EPT360041Z

Resistors

Ref#
Description
MFR. Part No.

R401

C/F/R 390 OHM 1/4W P

RCP143914Z

R402

C/F/R 390 OHM 1/4W P

RCP143914Z

Capacitors

Ref#
Description
MFR. Part No.

C401

C/C 0.01UF 50WV SL Z

CC0501037L

C402

C/C 0.01UF 50WV SL Z

CC0501037L

Diodes

Ref#
Description
MFR. Part No.

D401

DIODE 1N60P

ED1N00060P

D402

DIODE 1N60P

ED1N00060P



Ref#
Description
MFR. Part No.

JP2

JUMPER WIRE 7x10x7

WX01070710

JP3

JUMPER WIRE 7x10x7

WX01070710
