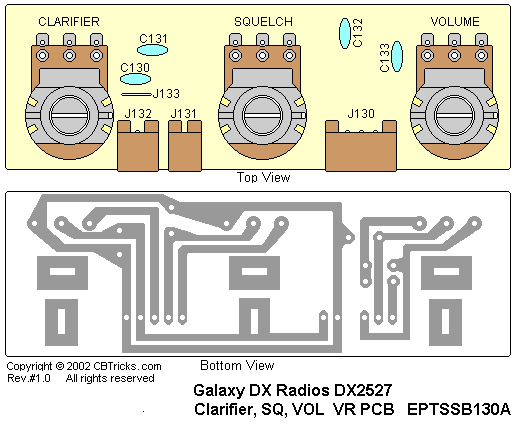

CLARIFIER SQUELCH, VOL. VR PCB (EPTSSB130A)
Schematic Diagram

Ref# Description
MFR. Part No.


Clarifier, SQ, VOL PCB EPTSSB130A
Complete with Components

#T-106D-P11



Clarifier, SQ, VOL PCB

EPTSSB130A



Ref#
Description
MFR. Part No.

C130

C/C 0.001UF 50W V SL Z

CC0501027L

C131

C/C 0.001UF 50W V SL Z

CC0501027L

C132

C/C 0.001UF 50W V SL Z

CC0501027L

C133

C/C 0.001UF 50W V SL Z

CC0501027L



Ref#
Description
MFR. Part No.

AF Gain

V/R 50KA

RV50303461

SQ

V/R 50KB

RV50303463

Clarifier

V/R 1KB

RV10203465



Ref#
Description
MFR. Part No.

J130

PCB CONNECTOR SOCKET 5P L TYPE

EX07N48497

J131

PCB CONNECTOR/S 2P L TYPE

EX07N48204

J132

PCB CONNECTOR/S 3P L TYPE

EX07N48546

J133

JUMPER WIRE 7x5x7

WX01070705
