Galaxy DX Radios DX2527
Documentation Project
CBTricks.com

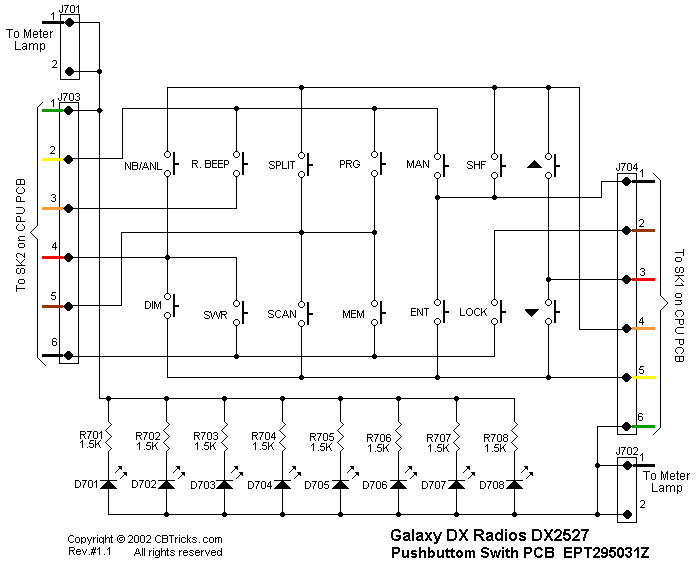

Pushbutton Switch PCB Layout (EPT210031Z) Schematic

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
