Galaxy
DX Radios DX2547
Documentation Project
CBTricks.com
Channel Selector PCB (EPT0SSB30A)

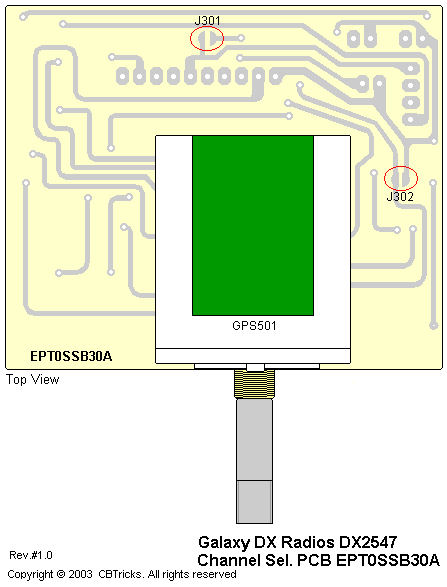

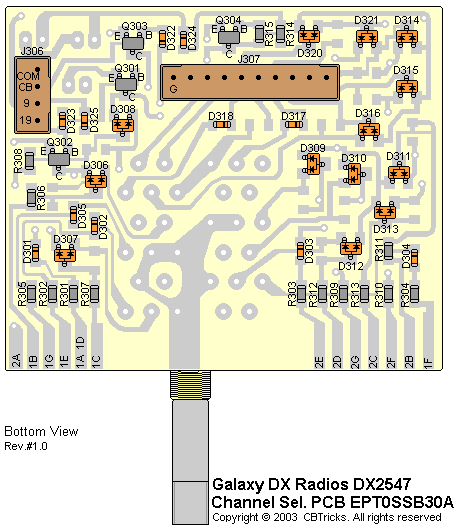

Trace Layout
Ref#
|
Description |
MFR.
Part No.
|
|
ROTARY SWITCH PCB (DX2547) EPT0SSB30A Complete with Components |
#T-148-P09 |
|
ROTARY SW PCB 51.5x43x1.6mm (d) |
EPT0SSB30A |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R301 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
R302 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R303 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R304 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R305 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R306 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R307 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R308 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R309 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R310 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R311 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R312 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R313 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R314 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
R315 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D301 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D302 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D303 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D304 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D305 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D306 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D307 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D308 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D309 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D310 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D311 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D312 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D313 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D314 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
D315 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
D316 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
D317 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D318 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D319 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D320 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
D321 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
D322 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D323 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D324 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D325 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q301 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
Q302 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
Q303 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
Q304 |
TRANSISTOR (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Switch
Ref#
|
Description |
MFR.
Part No.
|
|
ROTARY SW GPS-0501 |
EWRT32000S |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J306 |
PCB CONNECTOR/S 4P PH=2MM |
EX07N48490 |
J307 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
