Galaxy
DX Radios DX2547
Documentation Project
CBTricks.com

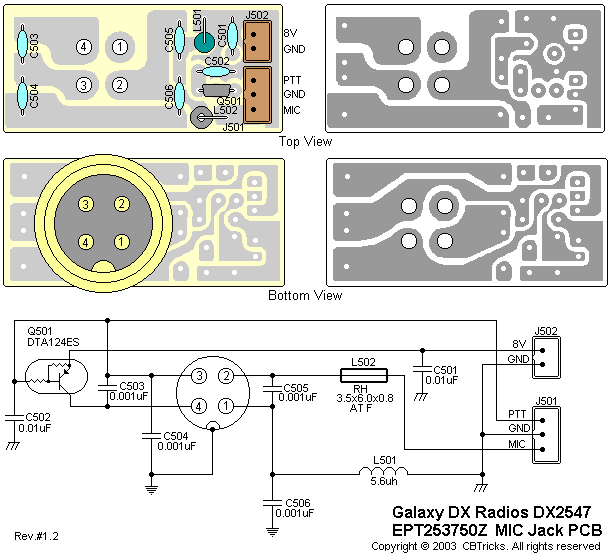

MIC PCB. (EPT253750Z)
Ref#
|
Description |
MFR.
Part No.
|
|
MIC P.C.B. (DX-2547) EPT253750Z Complete with Components |
|
|
MIC P.C.B. 17.5x39x1.6tmm (d) |
EPT253750Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C501 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C502 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C503 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C504 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C505 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C506 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
Inductors
Ref#
|
Description |
MFR.
Part No.
|
L501 |
CHOKE COIL 5.6UH |
ECCHK16001 |
L502 |
BEAD COIL RH3.5x6.0x0.8 AT F |
ECBAD18506 |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q501 |
T/R DTA124ES |
TDTA0124ES |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
|
MIC JACK 4P |
EX06N41101 |
J501 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
J502 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
