Galaxy DX Radios DX2547
Documentation Project

CBTricks.com

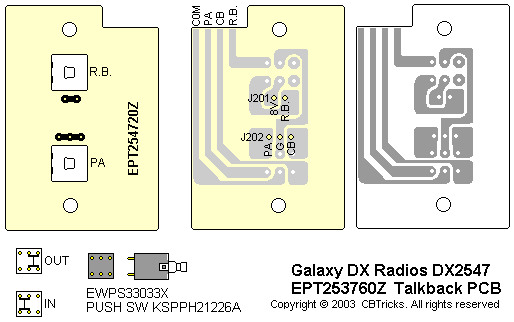

Push Switch R.B. / CB / PA P.C.B (EPT254720Z)

Ref#
Description
MFR. Part No.

PUSH SW P.C.B. EPT254720Z Complete with Components

#T-148-P02

PUSH SW P.C.B 42x24x1.6tmm (d)

EPT254720Z

Switch

Ref#
Description
MFR. Part No.


PUSH SW SPPH21226A

EWPS33033X

Connectors

Ref#
Description
MFR. Part No.

J201

PCB CONNECTOR/S 2P L=9.6mm

EX07N49204



PCB CONNECTOR/S 3P L=9.6mm

EX07N49205
