Galaxy DX Radios DX2547
Documentation Project

CBTricks.com

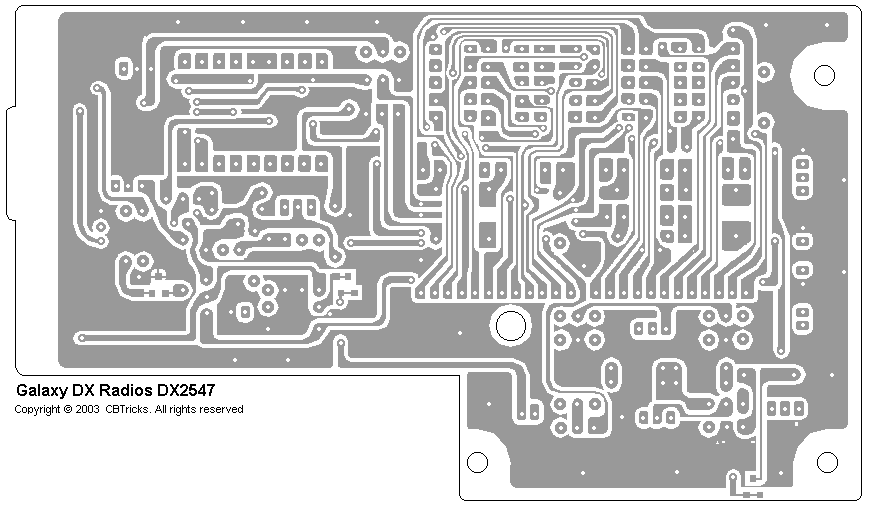

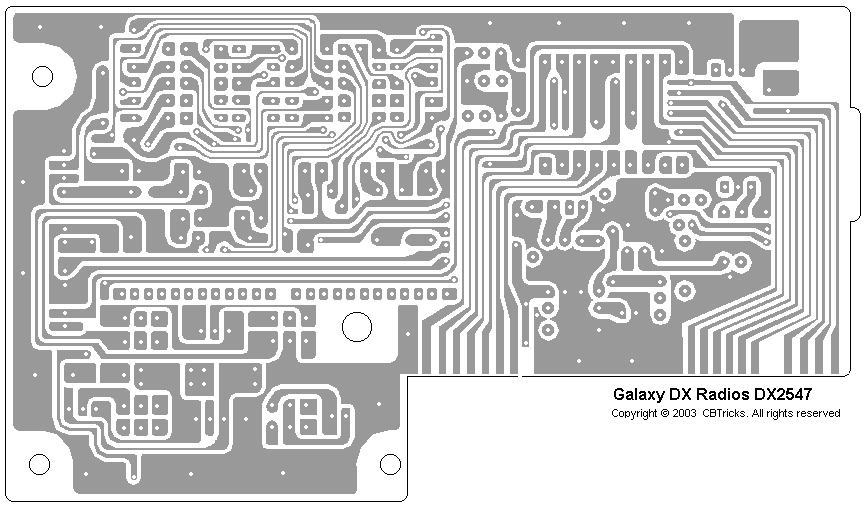

Display PCB. (EPT254740Z) Trace Layout


Copyright © 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
