Galaxy
DX Radios DX2547
Documentation Project
CBTricks.com
VOL

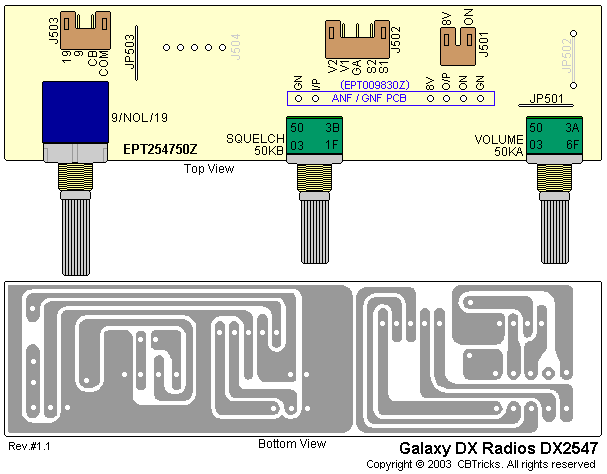

/ SQ VR P.C.B (EPT254750Z)

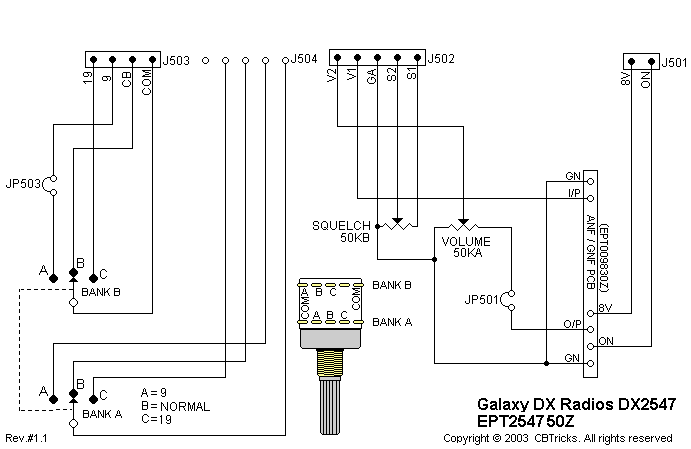

Schematic
Ref#
|
Description |
MFR.
Part No.
|
|
VR / ROTARY SW P.C.B EPT254750Z Complete with Components |
#T-148-P03 |
|
VR / ROTARY SW P.C.B 81x22x1.6tmm (d) |
EPT254750Z |
Switch
Ref#
|
Description |
MFR.
Part No.
|
9/NOL/19 |
ROTARY SW 3N |
EWRT32087S |
Potentiometers
Ref#
|
Description |
MFR.
Part No.
|
SQUELCH |
VR 50KB |
RV50303532 |
VOLUME |
V/R 50KA |
RV50303547 |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J501 |
PCB CONNECTOR/S 2P L TYPE PH=2MM |
EX07N48234 |
J502 |
PCB CONNECTOR/S 5P L TYPE PH=2MM |
EX07N48667 |
J503 |
PCB CONNECTOR/S 4P L TYPE PH=2MM |
EX07N48761 |
Jumper Wires
Ref#
|
Description |
MFR.
Part No.
|
JP501 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
JP503 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
