Galaxy DX Radios DX2547
Documentation Project

CBTricks.com

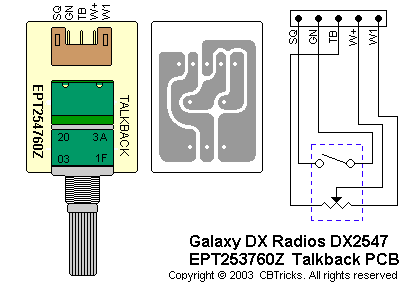

Talkback VR PCB (EPT0254760Z)



Ref#
Description
MFR. Part No.


TALKBACK PCB EPT254760Z Complete with Components

#T-148-P05



TALKBACK P.C.B 15x22x1.6tmm (d)

EPT254760Z

Potentiometers

Ref#
Description
MFR. Part No.


V/R (RK097111103E) 20KA/SW 9F L=20

RV20303558

 Connectors

Ref#
Description
MFR. Part No.


PCB CONNECTOR/S 5P L TYPE PH=2MM

EX07N48667
