Galaxy DX Radios DX2547
Documentation Project

CBTricks.com

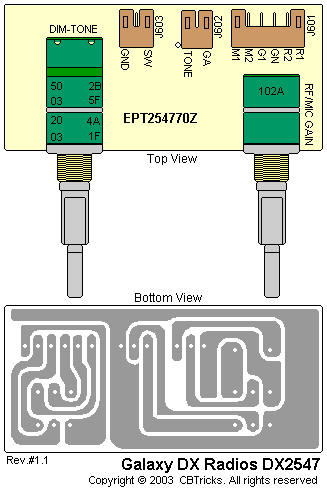

DIM / RF / MIC GAIN VR P.C.B (EPT254770Z)

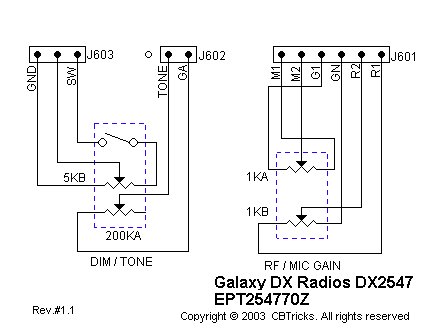

Schematic

Ref#
Description
MFR. Part No.


DIM/RF/MIC GAIN PCB EPT254770Z Complete with Components

#T-148-P06



DIM/RF/MIC GAIN PCB 45.5x22x1.6tmm (d)

EPT254770Z

Potentiometers

Ref#
Description
MFR. Part No.

RF/MIC GAIN

V/R (RK097221002E) 1KB/1KA

RV10203524

DIM-TONE

V/R 200KA/5KB 9F L=30

RV20403546

Connectors

Ref#
Description
MFR. Part No.

J601

PCB CONNECTOR/S 6P L TYPE PH=2MM

EX07N49095

J602

PCB CONNECTOR/S 2P L TYPE PH=2MM

EX07N48234

J603

PCB CONNECTOR/S 3P L TYPE PH=2MM

EX07N48947


Copyright © 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
