Galaxy DX Radios DX2547
Documentation Project

CBTricks.com

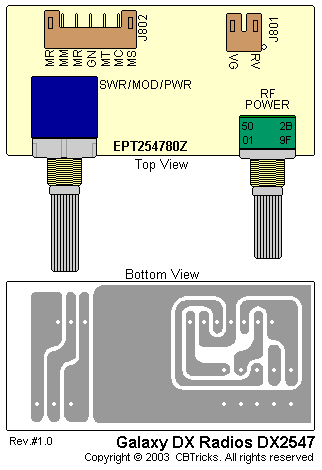

RF / MOD VR P.C.B. (EPT254780Z)

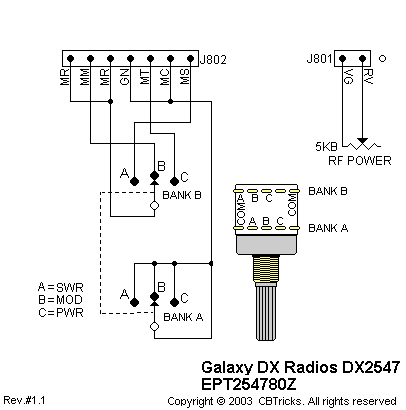

Schematic

Ref#
Description
MFR. Part No.


RF/MOD P.C.B. EPT254780Z Complete with Components

#T-148-P07



RF/MOD P.C.B 45.5x22x1.6tmm(d)

EPT254780Z

Potentiometers

Ref#
Description
MFR. Part No.

SWR/MOD/PWR

ROTARY SW 3N

EWRT32087S

RF POWER

VR 5KB(RK097111011E)

RV50203525

Connectors

Ref#
Description
MFR. Part No.

J801

PCB CONNECTOR/S 2P L TYPE PH=2MM

EX07N48234

J802

PCB CONNECTOR/S 7P L TYPE PH=2MM

EX07N48620
