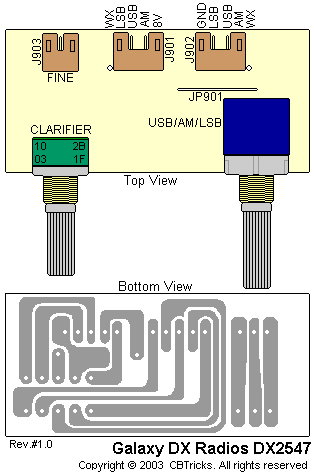

MODE / Clarifier P.C.B. (EPT254790Z)

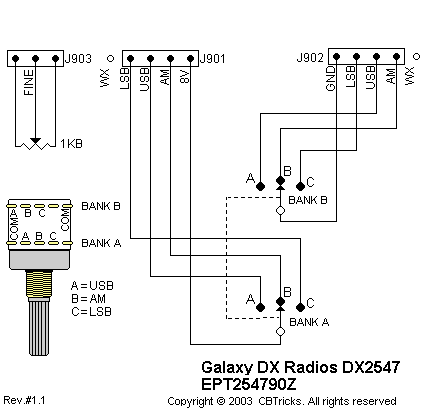

Schematic
| Ref# | Description |
MFR.
Part No.
|
|
MODE/FINE P.C.B EPT254790Z Complete with Components |
#T-148-P08 |
|
|
MODE/FINE PCB 45.5x22x1.6tmm (d) |
EPT254790Z |
Switch
|
Ref#
|
Description |
MFR.
Part No.
|
|
USB/AM/LSB |
ROTARY SW 3N |
EWRT32087S |
Potentiometers
|
Ref#
|
Description |
MFR.
Part No.
|
|
CLARIFIER |
V/R 1KB(RK097111012C) |
RV10203528 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J901 |
PCB CONNECTOR/S 4P L TYPE PH=2MM |
EX07N48761 |
|
J902 |
PCB CONNECTOR/S 4P L TYPE PH=2MM |
EX07N48761 |
|
J903 |
PCB CONNECTOR/S 3P L TYPE PH=2MM |
EX07N48947 |
Jumper Wires
|
Ref#
|
Description |
MFR.
Part No.
|
|
JP901 |
JUMPER WIRE 7x12x7mm |
WX01070712 |
