Galaxy DX Radios DX33HML
Documentation Project

CBTricks.com

Display PCB (EPT360032Z)

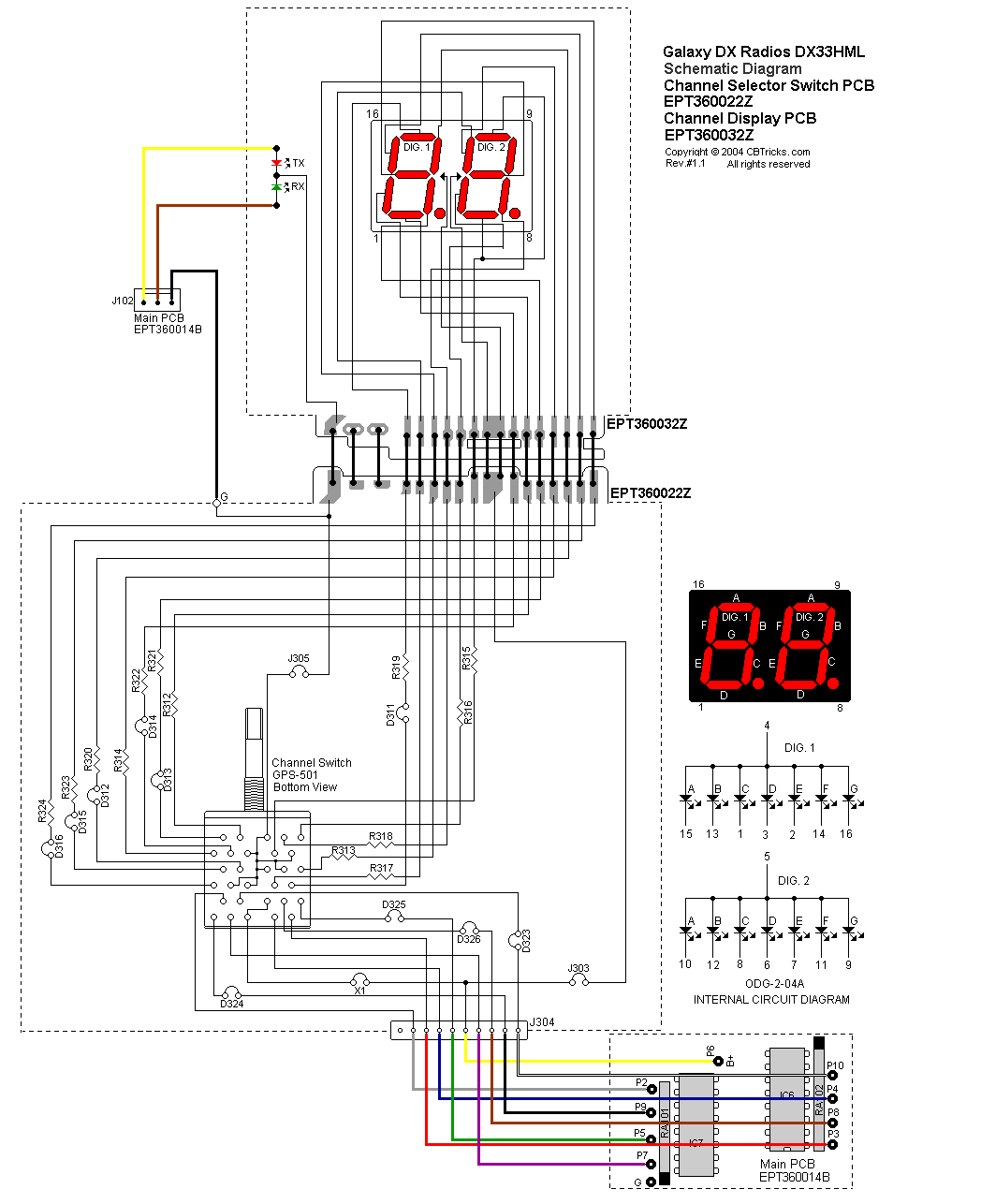

Schematic Diagram

Ref#
Description
MFR. Part No.



DISPLAY P.C.B. EPT360032A Complete with Components

#T-140I-P03



DISPLAY P.C.B. 87x40x1.6tmm

EPT360032A

LED's

Ref#
Description
MFR. Part No.


LED DISPLAY RED 0.4in

EX03N40003

D309

LED 3MM RED/GREEN

EX01N40004

Hardware

Ref#
Description
MFR. Part No.


LED DISPLAY HOLDER

PT3600060A



LED DISPLAY WINDOW RED

PT3600070A


Copyright © 1998,1999,2000, 2001, 2002, 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
