Galaxy DX Radios DX33HML
Documentation Project

CBTricks.com

Frequency Conversion

Export Frequency Conversion

1.

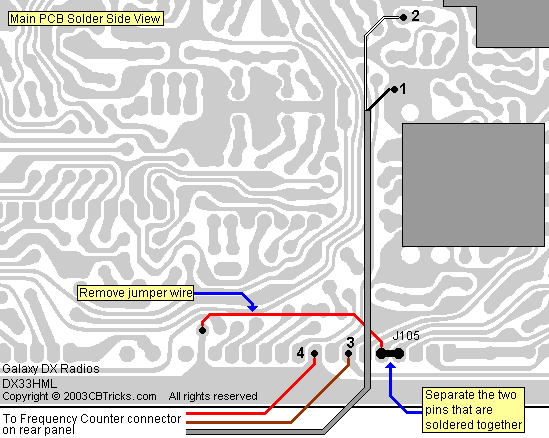

Remove the top cover from the unit and locate the row of 15 pins across the front of the unit. Unsolder the short jumper wire as shown above to pins E and F of J105 (connected together).
2.

Unsolder the shorting solder bridge of pins E and F of J105 so that they are independent pins having no connection between them.

Channel Chart
(After Modification)



Note: Older units have a loose wire on the top side (speaker side) located behind the band selector switch. This wire (usually purple) connects to the short jumper wire solder diagonally across two pins of the band selector. Newer units already have this connection made.



WARNING! Not Legal For Class D CB Use In The U.S.A.


Copyright © 1998,1999,2000, 2001, 2002, 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
