Galaxy
DX Radios DX33HP
Documentation Project
CBTricks.com

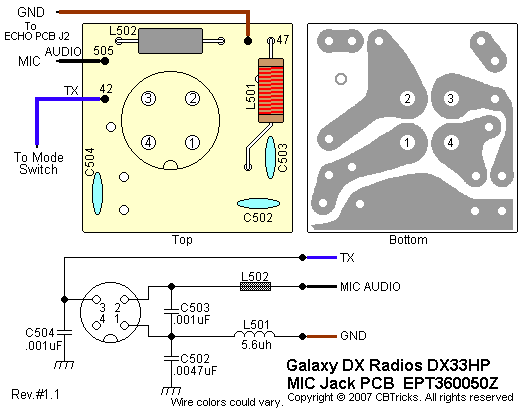

Mic Jack PCB (EPT360050Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MIC Jack P.C.B. EPT360050Z Complete with Components |
#T-140I-P04
|
|
|
MIC Jack P.C.B. 25x25x1.6tmm |
EPT360050Z
|
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C502 |
C/C 0.0047UF 50WV SL Z |
CC0504727L |
|
C503 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C504 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L501 |
CHOKE COIL 5.6UH |
ECCHK16001 |
|
L502 |
BEAD COIL 3.5X6X1.2 PH=12.5 |
ECBAD18550 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MIC JACK SCS 164(R) |
EX06N41020 |
