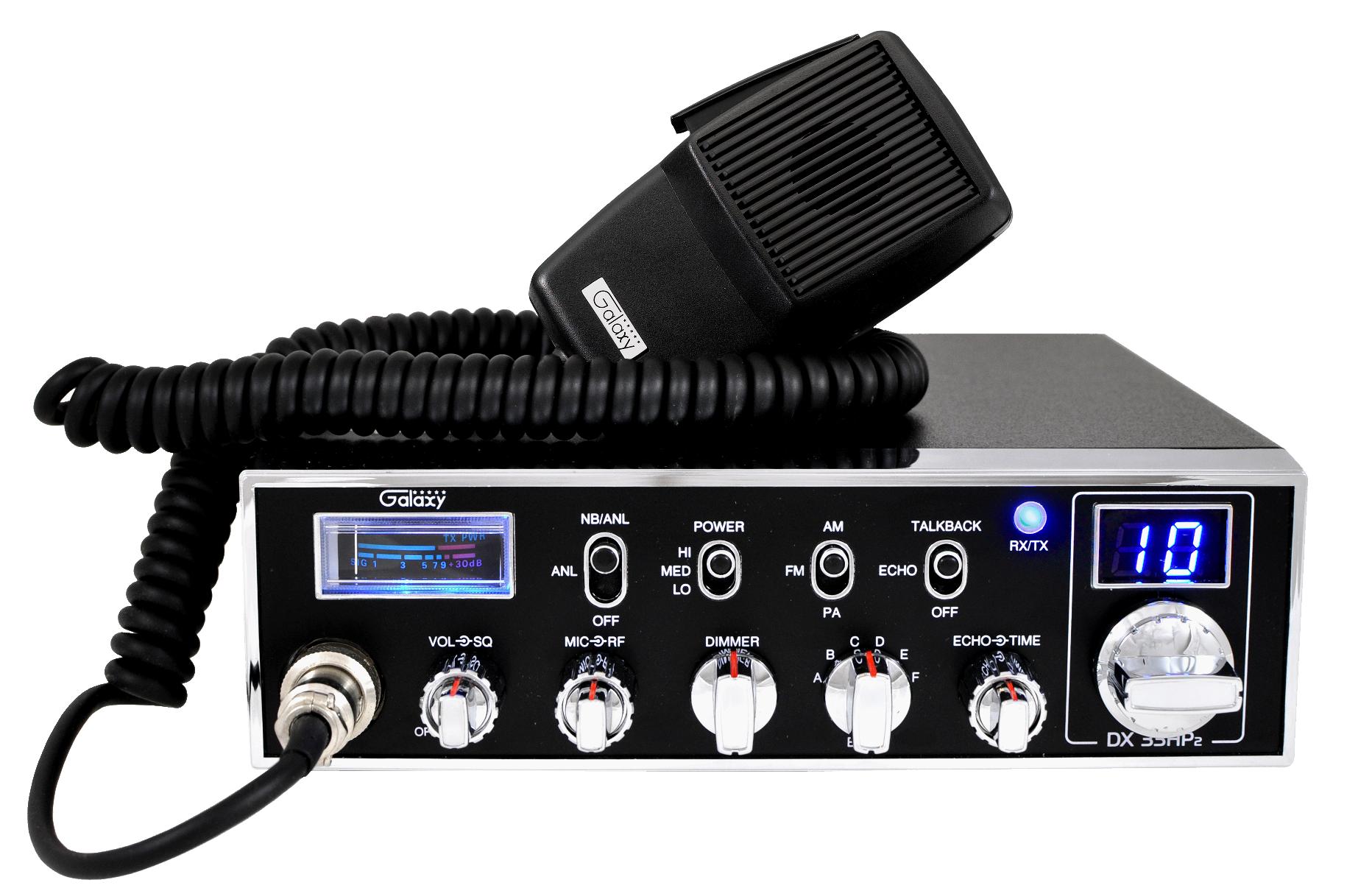

SPECIFICATIONS
    Owner's Manual

More Information Coming soon

DIAGRAMS
    DX33HP Schematic Diagram (EPT3600-15C)

Tech Note: for the problem of NOT Having Echo when Talk Back Switch is Turned ON. For all Galaxy DX-33HP2 models with a serial number beginning in M911XXXXX.
Galaxy DX33HP2 911 Mod

Mic Wiring Diagram

Stock
1- Shield  (Ground)
2- Yellow  (Audio)
3- Red      (Transmit)
4- White   (Receive)

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
