Galaxy DX Radios DX44V
Documentation Project

CBTricks.com

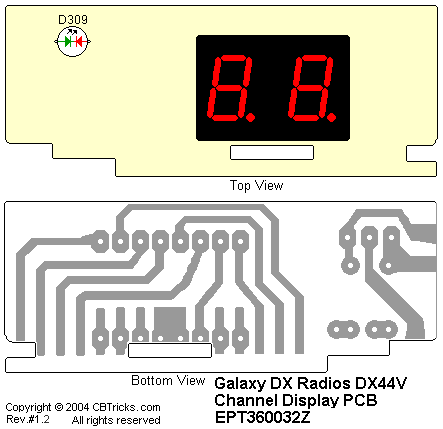

Display PCB Layout (EPT360032Z)
Schematic Diagram



Ref#
Description
MFR. Part No.


LED DISPLAY P.C.B. Complete with Components

#T-140H-P03



DISPLAY P.C.B. 87x40x1.6tmm

EPT360032A

LED's

Ref#
Description
MFR. Part No.


LED DISPLAY RED 0.4in

EX03N40003

D309

LED 3MM RED/GREEN

EX01N40004




Hardware

Ref#
Description
MFR. Part No.


LED DISPLAY HOLDER

PT3600060A



LED DISPLAY WINDOW RED

PT3600070A
