Galaxy DX Radios DX45MP
Documentation Project
CBTricks.com

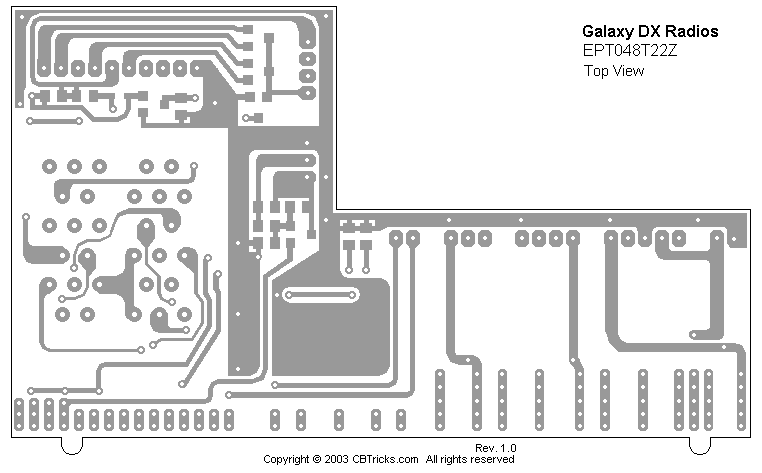

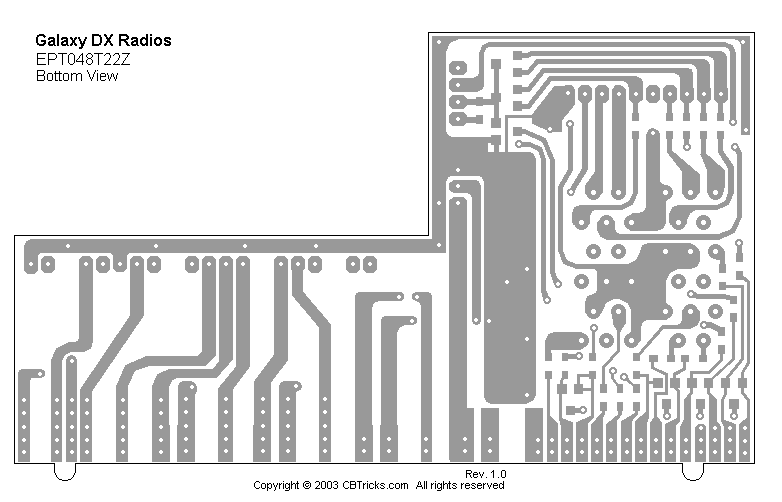

Channel Selector PCB (EPT48T22Z) Trace Layout

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
