Galaxy DX Radios DX45MP
Documentation Project
CBTricks.com

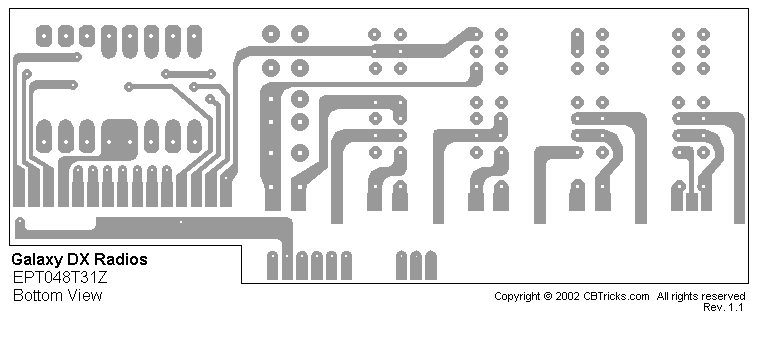

Display / Switch PCB (EPT048T31Z)
Trace Layouts

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
